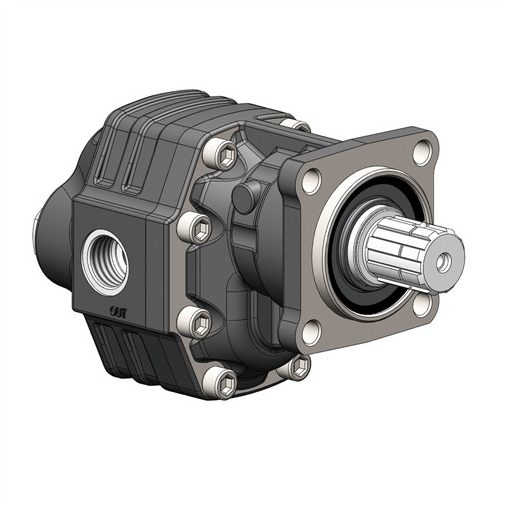

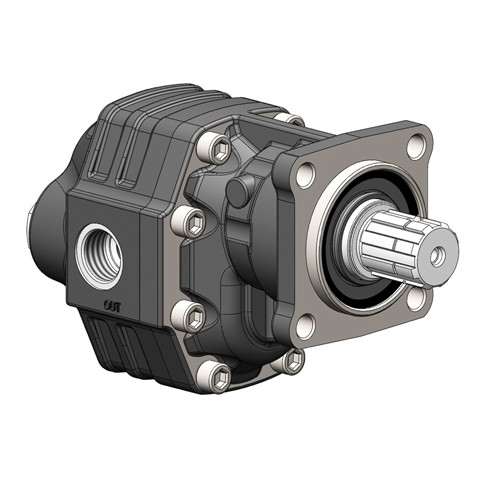

OMFB Gear Pump 10501110173
Product description:
The NPH-17 model belongs to OMFB’s reliable, professional-grade range of 4-hole ISO mounted hydraulic pumps.
It delivers strong performance in a compact size, making it an ideal choice for tipper truck bodies, lifting systems, and auxiliary hydraulic systems.
The pump’s cast iron housing provides outstanding durability, while the precise gear design ensures efficient, smooth oil flow even at high pressure.
Main features:
- Type: NPH-17
- Rotation: Clockwise
- Suction port (IN): G 1/2”
- Pressure port (OUT): G 1/2”
- Displacement: 17.04 cm³/rev
- Maximum operating pressure: 290 bar
- Peak pressure: 325 bar
- Maximum speed: 3000 rpm
- Minimum speed: 300 rpm
- Shaft configuration: 8×32×36 (ISO 14)
- Mounting: 4-hole, Ø12 mm
- Housing material: Cast iron
- Weight: 11 kg
