OMFB Gear Pump 10501100746
Product description:

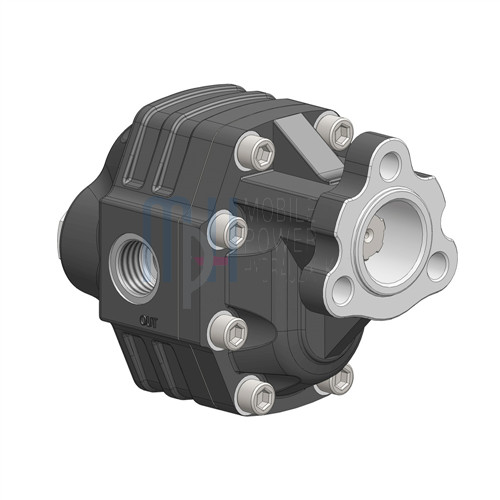

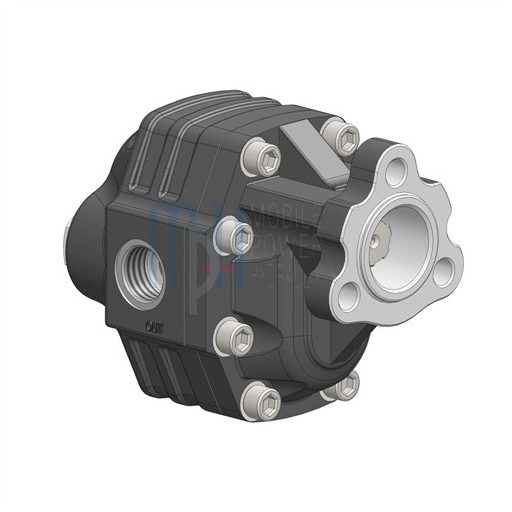

High-performance OMFB NPH-73 hydraulic gear pump.
Left rotation design with a 3-bolt UNI flange.
A reliable solution for industrial, agricultural and truck hydraulic systems.
Main features:
- Type: NPH-73
- Rotation: Left
- Inlet port (IN): G 1”
- Outlet port (OUT): G 3/4”
- Displacement: 72.88 cm³/rev
- Max. working pressure: 205 bar
- Peak pressure: 230 bar
- Maximum speed: 2500 rpm
- Minimum speed: 300 rpm
- Shaft type: 6×21×25 (ISO 14)
- Mounting: 3-bolt, Ø12 mm
- Housing material: Cast iron
- Weight: 12.5 kg
