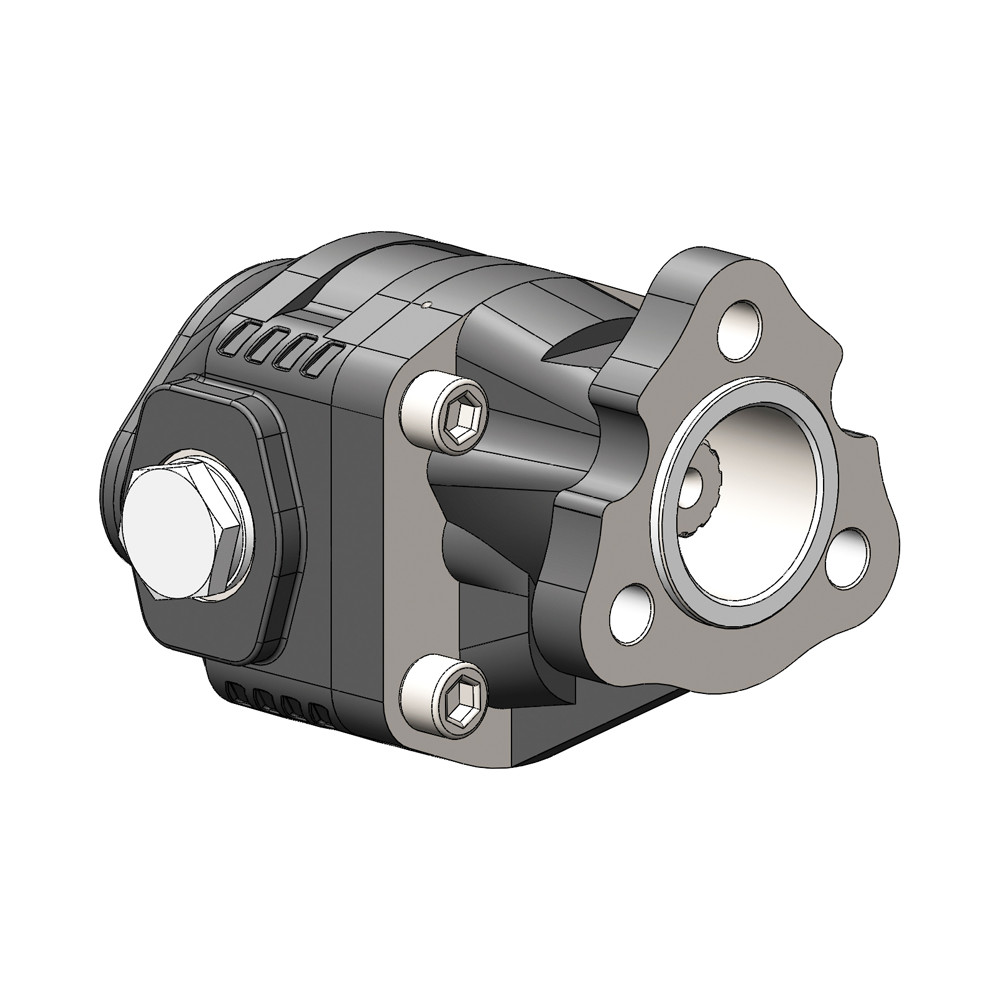

OMFB Gear Pump 10500320135
Product description:
Reliable, compact OMFB NPLU-12 hydraulic gear pump.
Right rotation design, equipped with a 3-bolt DIN 13 flange and rear/side ports.
Ideal for industrial, agricultural and mobile hydraulic systems.
Main features:
- Type: NPLU-12
- Rotation: Right / Right rotation
- Inlet port (IN): G 3/4”
- Outlet port (OUT): G 1/2”
- Displacement: 11.92 cm³/rev
- Max. working pressure: 280 bar
- Peak pressure: 310 bar
- Maximum speed: 3000 rpm
- Minimum speed: 300 rpm
- Shaft type: DIN 5482 Z=13
- Mounting: 3-bolt, Ø12 mm
- Dimensions (A x B x C x D): 138 x 104 x 98 x 116 mm
- Weight: 5.3 kg
