OMFB PNEUMATIC PROPORTIONAL CAB SWITCH WITH PTO SWITCH

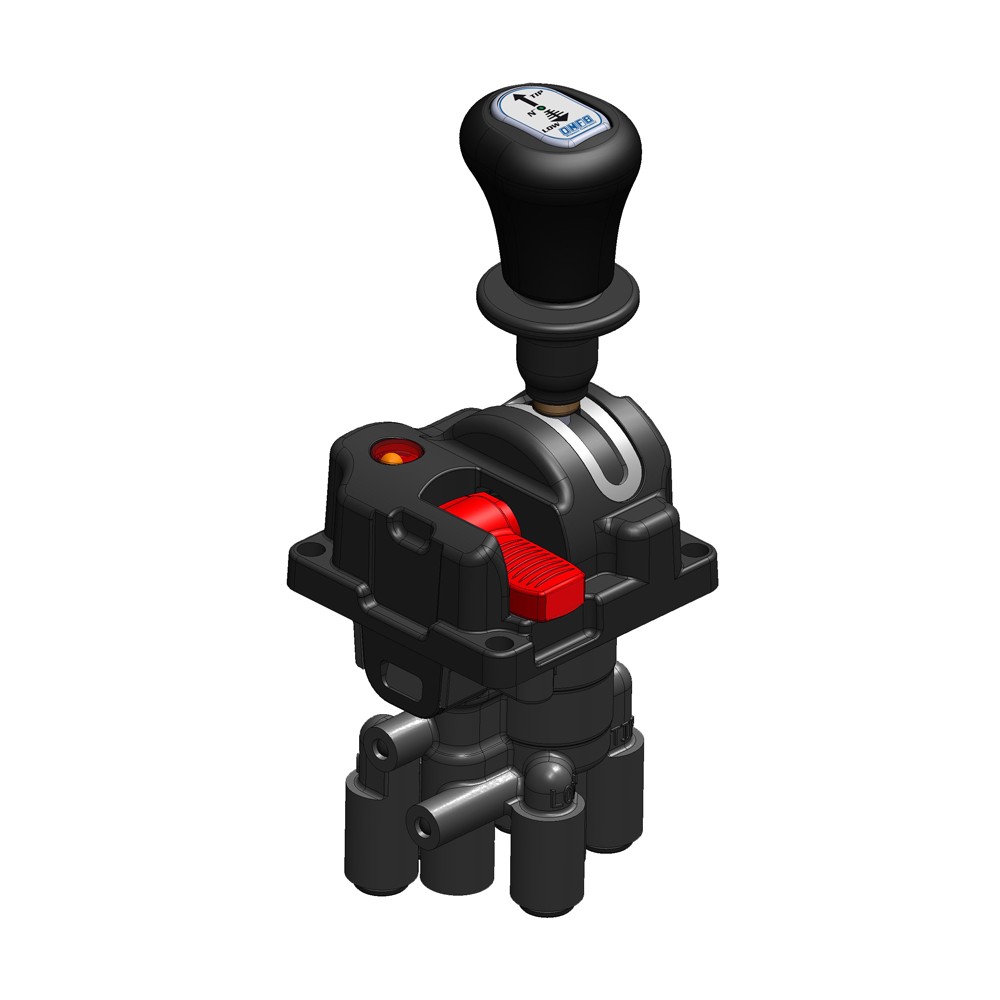

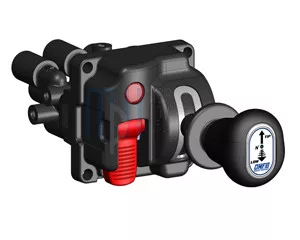

OMFB 10000131094 – Pneumatic proportional in-cab control with PTO lever, automatic PTO disengagement
Product description:
The pneumatic proportional in-cab control with part number 10000131094 is designed for lifting/lowering control of tipper body equipment and for PTO actuation. It features a technopolymer housing with integrated air connections. The unit includes automatic PTO disengagement, while the cloche return is manual, with lift/lower blocking (preset position version).
Main features:
- Function: tipping (TIP/LOW) + PTO control
- Version: automatic PTO disengagement
- Air connection: Ø6
- Medium: air
- Max. operating pressure: 12 bar
- Operating temperature: -30…+80 °C
How it works?
This control unit uses compressed air to operate a hydraulic directional valve, which determines whether the hydraulic cylinder extends or retracts. Depending on the lever's position, the unit opens or blocks specific air channels, changing the system’s state (tip up, down, or neutral).
The pneumatic actuation allows operators to control high-force hydraulic systems with minimal effort. This results in simple, safe operation for vehicle drivers under demanding work conditions.
