OMFB PNEUMATIC SWITCH (101)

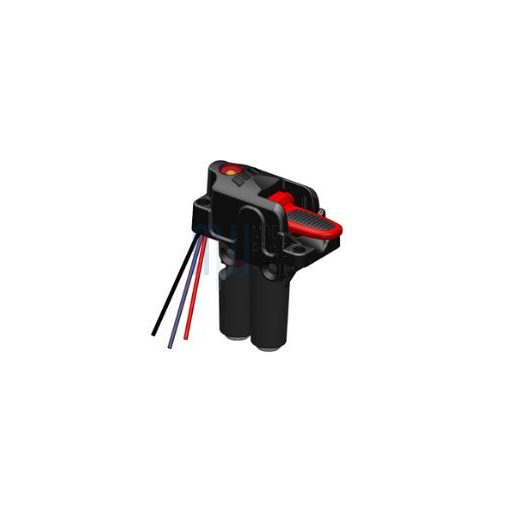

OMFB 10000100515 – 3/2 pneumatic multifunction switch (with LED indication)
Product description:
The 3/2 pneumatic switch with part number 10000100515 is designed for in-cab installation and is used for the pneumatic control of hydraulic body equipment. The valve is rated for a maximum operating pressure of 12 bar and features a technopolymer housing with integrated air connections. The unit includes a switch with built-in LED indication to signal the active control status and is compatible with N-FORCE pneumatic control systems.
Main features:
- 3/2 pneumatic switch
- Max. operating pressure: 12 bar
- Housing material: technopolymer
- Integrated air connections: IN/OUT Ø6 mm
- Integrated switch with LED indicator (active control status)
- Operating temperature: -30…+80 °C
How it works?
The switch mechanically starts or interrupts the airflow within the pneumatic control circuit. The operator actuates the switch using a lever or button, which alters the internal valve position to start or stop a pneumatic or hydraulic function. It often also serves a safety function, allowing for quick manual override of the system.
Thanks to pneumatic operation, it ensures fast response and low maintenance requirements.
