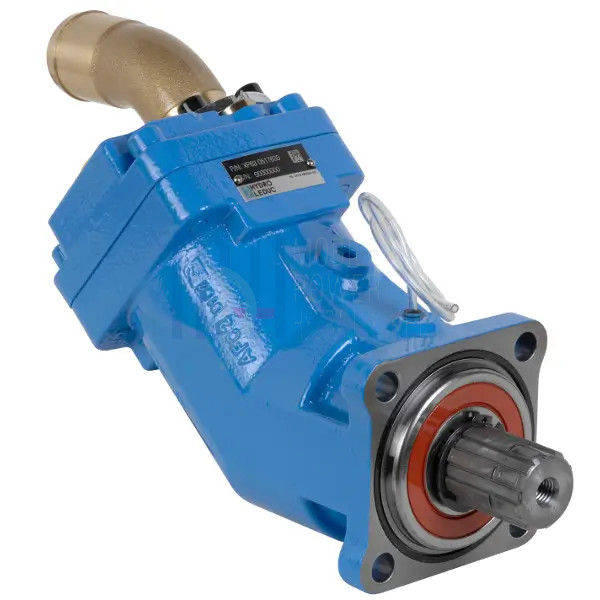

Hydro Leduc XPi 12 – Hydraulic Pump (0523820)
Product Description:
The Hydro Leduc XPi 12 is the smallest displacement model in the series, featuring a compact, fixed-displacement, bent-axis piston hydraulic pump design. Its 7-piston architecture, reinforced sealing, and high-strength materials ensure extremely reliable operation and long service life. The pump can handle 380 bar continuous pressure and 420 bar peak load, operating at speeds up to 3150 rpm.
Main Technical Data:
- Part Number: 0523820
- Displacement: 12 ccm/rev
- Max. Continuous Pressure: 380 bar
- Max. Peak Pressure: 420 bar
- Maximum Speed: 3150 rpm
- Absorbed Torque at 380 bar: 76 Nm
- Weight: 9.2 kg (without inlet fitting) / 9.65 kg (with inlet fitting)
- Dual rotation: rotation direction can be changed by swapping the inlet and outlet ports.
Applications:
- Compact hydraulic systems
- Low-power industrial and mobile equipment
- Hydraulic applications with limited installation space
The Hydro Leduc XPi 12 is a highly reliable, lightweight, and efficient hydraulic pump, making it an ideal choice for small-flow, high-pressure systems.
