Hydro Leduc XPi 32 – Hydraulic Pump (0523790)
Product Description:

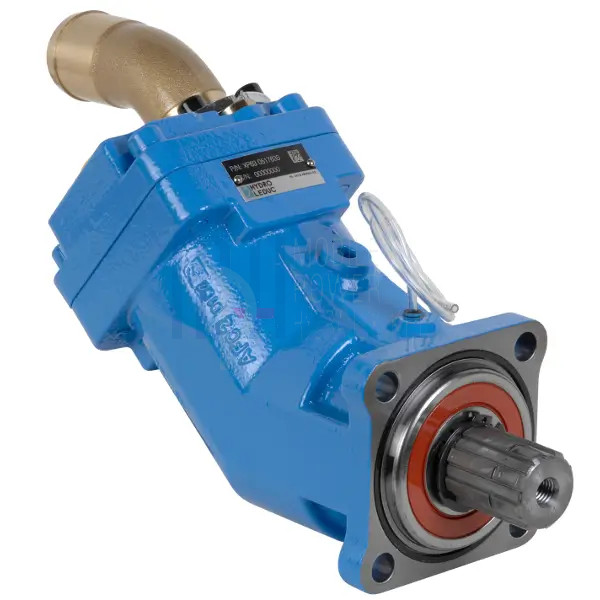

The Hydro Leduc XPi 32 is a compact, fixed-displacement, bent-axis piston hydraulic pump. Its 7-piston design, high-strength materials, and reinforced sealing ensure long service life and reliable operation. The pump can handle 380 bar continuous pressure and 420 bar peak load, performing reliably at speeds up to 2700 rpm.

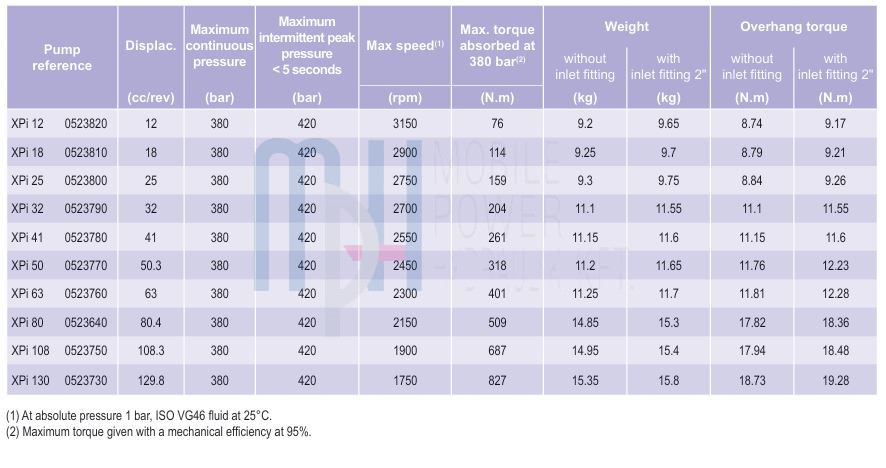

Main Technical Data:
- Part Number: 0523790
- Displacement: 32 cc/rev
- Max. Continuous Pressure: 380 bar
- Max. Peak Pressure: 420 bar
- Maximum Speed: 2700 rpm
- Absorbed Torque at 380 bar: 204 Nm
- Weight: 11.1 kg (without inlet fitting) / 11.55 kg (with inlet fitting)
- Dual rotation: rotation direction can be changed by swapping the inlet and outlet ports.
Applications:
- Industrial and mobile hydraulic systems
- Lifting machinery, municipal vehicles, work machines
- High-performance applications with limited installation space
The Hydro Leduc XPi 32 is a reliable, high-performance hydraulic pump that ensures stable operation in high-pressure and heavy-duty environments.
