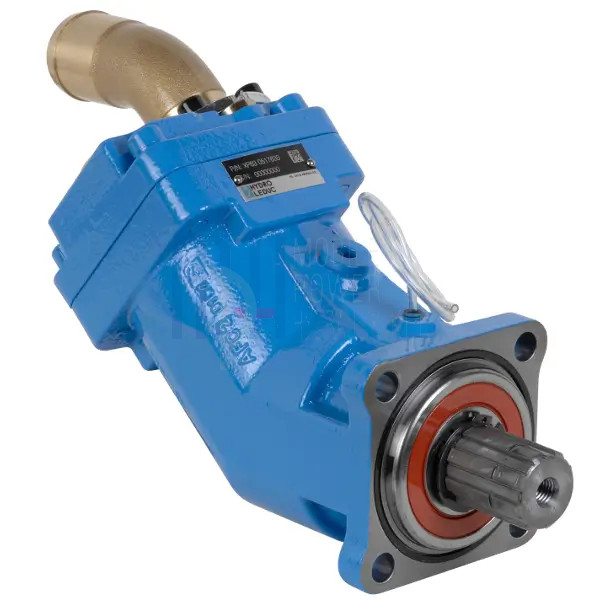

Hydro Leduc XPi 41 – Hydraulic Pump (0523780)
Product Description:
The Hydro Leduc XPi 41 is a compact, fixed-displacement, bent-axis piston hydraulic pump that delivers high reliability and long service life thanks to its 7-piston design and reinforced sealing. The model can withstand 380 bar continuous pressure and 420 bar peak load, operating reliably at speeds up to 2550 rpm.
Main Technical Data:
- Part Number: 0523780
- Displacement: 41 cc/rev
- Max. Continuous Pressure: 380 bar
- Max. Peak Pressure: 420 bar
- Maximum Speed: 2550 rpm
- Absorbed Torque at 380 bar: 261 Nm
- Weight: 11.15 kg (without inlet fitting) / 11.6 kg (with inlet fitting)
- Dual rotation: rotation direction can be changed by swapping the inlet and outlet ports.
Applications:
- Industrial and mobile hydraulic systems
- Lifting equipment, work machinery, municipal and special-purpose vehicles
- High-performance applications with limited installation space
The Hydro Leduc XPi 41 is a versatile, high-performance hydraulic pump, ideal for high-pressure systems that require reliable operation.
