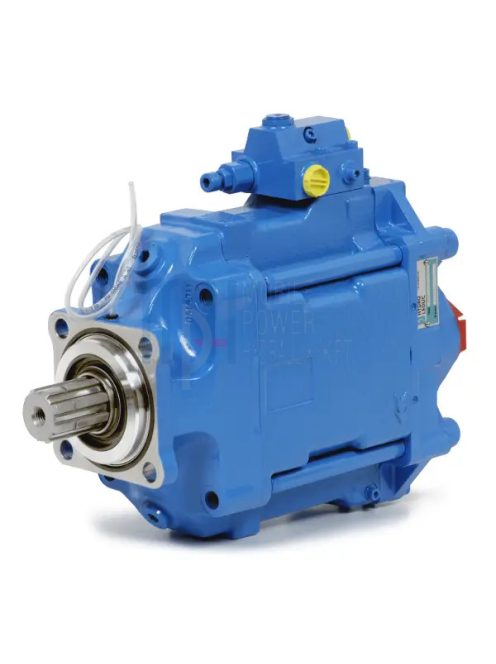

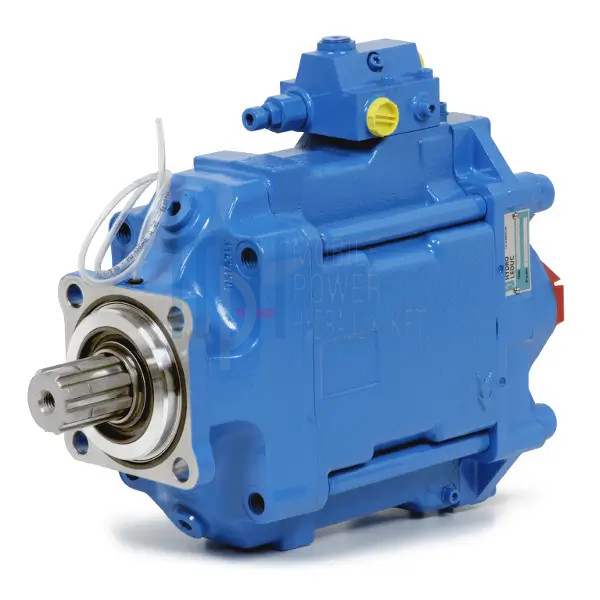

Hydro Leduc TXV 150 – Load Sensing variable displacement hydraulic pump (0518600)
Product description:
The Hydro Leduc TXV 150 is a high-displacement, high-performance, variable displacement, load-sensing piston hydraulic pump. The pump automatically adjusts the delivered flow rate to the load demand, significantly reducing energy consumption, minimizing oil heating, and improving the efficiency of the hydraulic system. The TXV series was developed specifically for truck hydraulic applications, making it an excellent choice for cranes, forestry machinery, municipal vehicles, and construction machines.

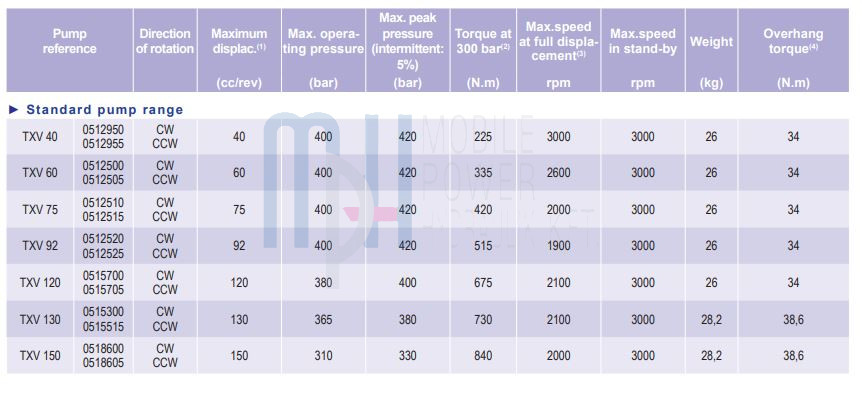

Main technical data:
- Part number: 0518600
- Maximum displacement: 150 cm³/rev
- Max. operating pressure: 310 bar
- Max. peak pressure: 330 bar
- Torque at 300 bar: 840 Nm
- Maximum speed (at full displacement): 2000 rpm
- Maximum speed (standby): 3000 rpm
- Weight: 28.2 kg
- Rotation: Clockwise (CW)
Applications:

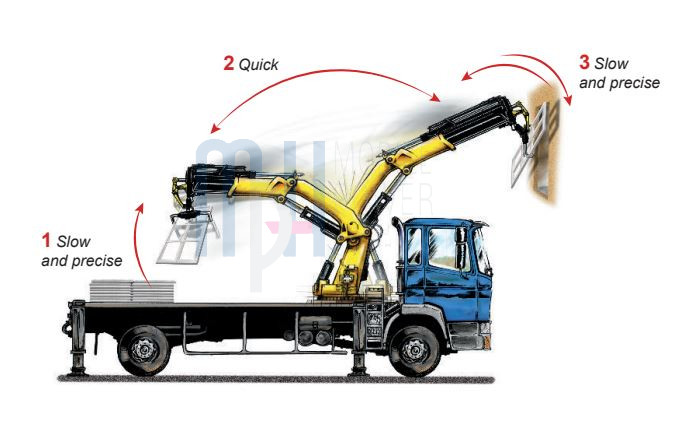

- High-performance truck hydraulic systems
- Forestry and loading machinery
- Municipal vehicles (waste handling, snow plow and salt spreading systems)
- Construction equipment and specialized hydraulic systems
The Hydro Leduc TXV 150 is an excellent choice for any application where high flow, reliable Load Sensing operation, and long service life are required.
