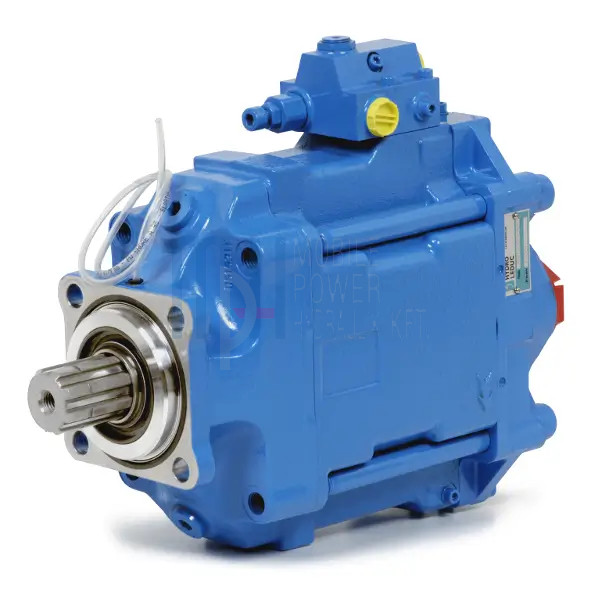

Hydro Leduc TXV 120 – Load Sensing variable displacement hydraulic pump (0515705)
Product description:
The Hydro Leduc TXV 120 is a high-performance, variable displacement, load-sensing controlled piston hydraulic pump. The system automatically regulates the delivered flow rate depending on the load, reducing energy consumption, minimizing oil heating, and improving overall hydraulic system efficiency. The TXV series is designed specifically for truck hydraulics, making it an ideal choice for cranes, municipal and forestry vehicles, as well as construction machinery.
Main technical data:
- Part number: 0515705
- Maximum displacement: 120 cm³/rev
- Max. operating pressure: 380 bar
- Max. peak pressure: 400 bar
- Torque at 300 bar: 675 Nm
- Maximum speed (at full displacement): 2100 rpm
- Maximum speed (standby): 3000 rpm
- Weight: 26 kg
- Rotation: Counterclockwise (CCW)
Applications:
- High-performance truck hydraulic systems
- Municipal vehicles (waste collection, snow removal machines, salt spreaders)

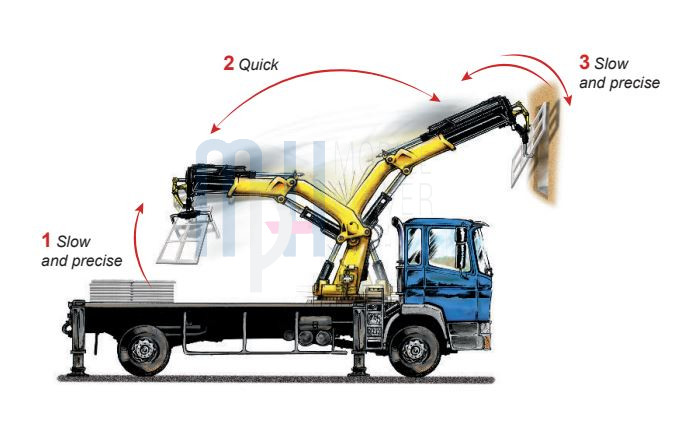

- Forestry and loader cranes
- Construction and specialized hydraulic equipment
The Hydro Leduc TXV 120 (CCW) provides a reliable, energy-efficient, high-performance solution for any application requiring precise Load Sensing control and high operating pressure.
