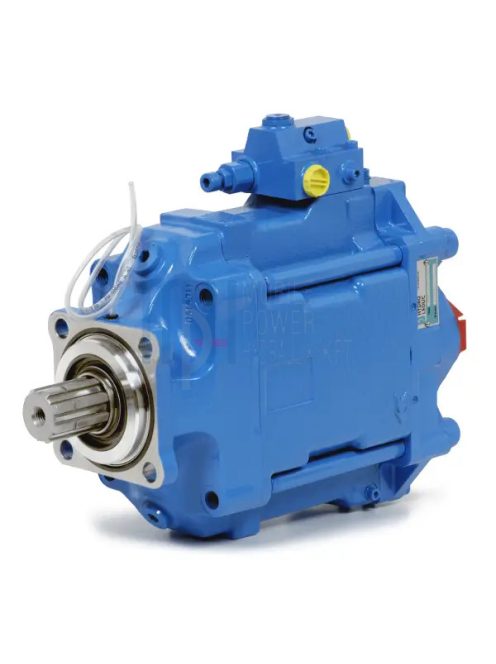

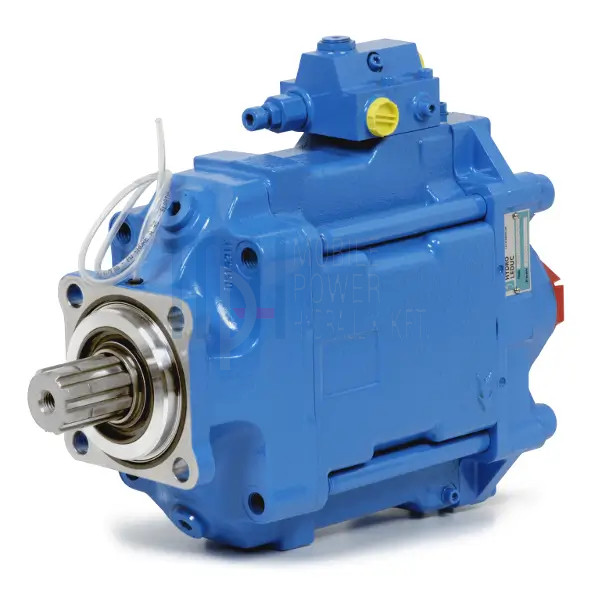

Hydro Leduc TXV 120 – Load Sensing variable displacement hydraulic pump (0515700)
Product description:
The Hydro Leduc TXV 120 is a high-performance, variable displacement, load-sensing controlled piston hydraulic pump. Load Sensing technology automatically adjusts the delivered flow rate according to system demand, reducing energy consumption, minimizing oil heating, and improving operational reliability. The TXV series was developed specifically for truck hydraulic systems, making it an excellent choice for cranes, municipal vehicles, forestry equipment, and construction machinery.
Main technical data:
- Part number: 0515700
- Maximum displacement: 120 cm³/rev
- Max. operating pressure: 380 bar
- Max. peak pressure: 400 bar
- Torque at 300 bar: 675 Nm
- Maximum speed (at full displacement): 2100 rpm
- Maximum speed (standby): 3000 rpm
- Weight: 26 kg
- Rotation: Clockwise (CW)
Applications:
- High-performance truck hydraulic systems
- Municipal vehicles (waste collection, snow clearing equipment, salt spreaders)

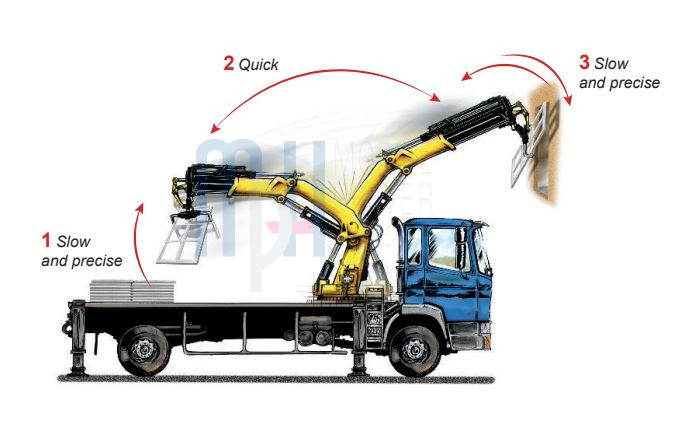

- Forestry and loader cranes
- Construction machines and specialized hydraulic systems
The Hydro Leduc TXV 120 is an excellent choice for high-flow, high-pressure, energy-efficient Load Sensing hydraulic applications.
