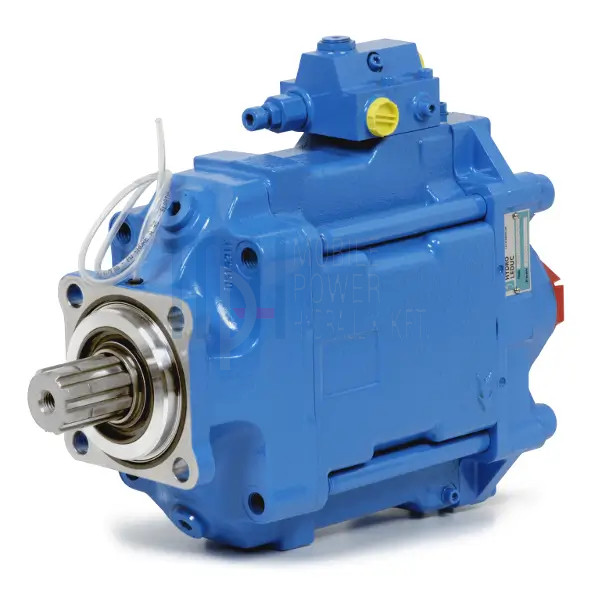

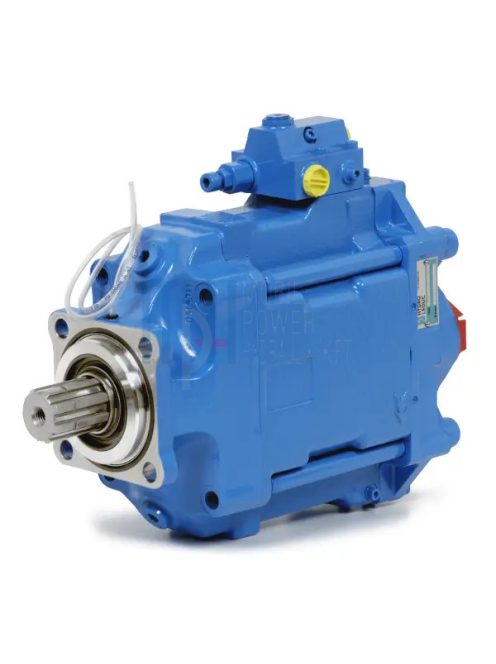

Hydro Leduc TXV 130 – Load Sensing variable displacement hydraulic pump (0515300)
Product description:
The Hydro Leduc TXV 130 is a high-performance, variable displacement, load-sensing controlled piston hydraulic pump. The pump automatically adjusts the delivered flow rate to match the load demand, significantly reducing energy consumption, minimizing oil heating, and improving overall hydraulic system efficiency. The TXV series is specifically designed for truck hydraulic applications such as cranes, forestry machinery, municipal vehicles, and construction equipment.

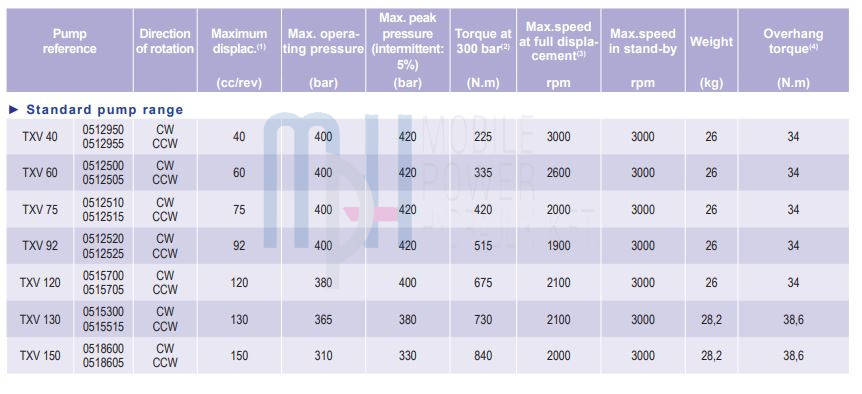

Main technical data:
- Part number: 0515300
- Maximum displacement: 130 cm³/rev
- Max. operating pressure: 365 bar
- Max. peak pressure: 380 bar
- Torque at 300 bar: 730 Nm
- Maximum speed (at full displacement): 2100 rpm
- Maximum speed (standby): 3000 rpm
- Weight: 28.2 kg
- Rotation: Clockwise (CW)
Applications:
- High-performance truck hydraulic systems

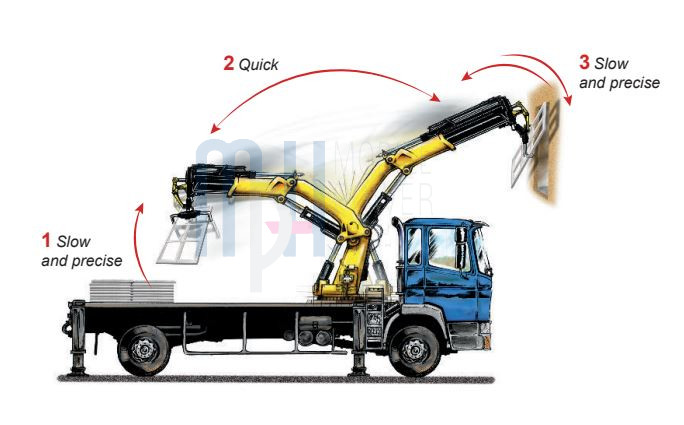

- Forestry and loader cranes
- Municipal vehicles (waste collection, snow clearing and salt spreading equipment)
- Construction and specialized hydraulic machinery
The Hydro Leduc TXV 130 is an ideal choice for applications requiring high flow, high pressure, and outstanding reliability with Load Sensing control.
