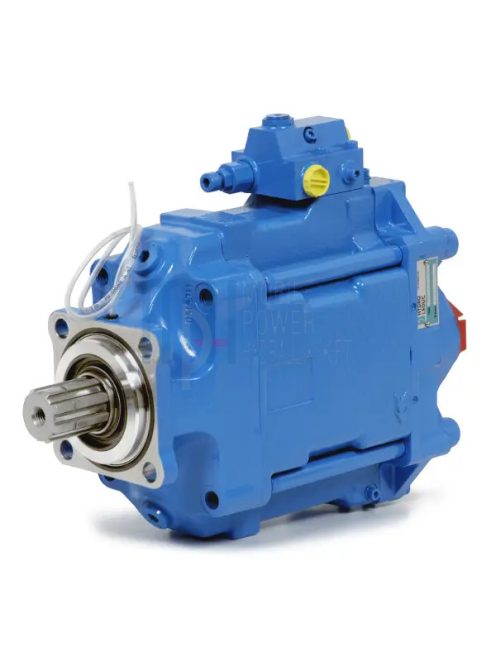

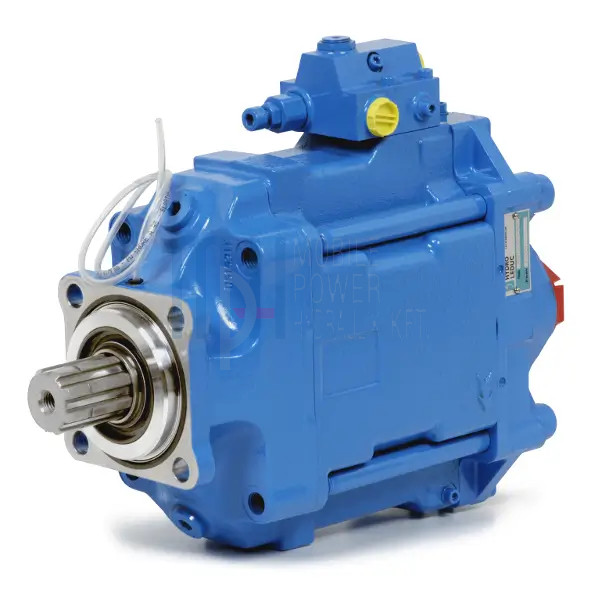

Hydro Leduc TXV 40 – Load Sensing variable displacement hydraulic pump (0512955)
Product description:
The Hydro Leduc TXV 40 is a compact, variable displacement, load-sensing piston hydraulic pump that automatically regulates the delivered flow rate according to the load. This technology reduces energy consumption, minimizes system heat load, and provides excellent control accuracy. The TXV series was designed specifically for truck hydraulic applications, making it an ideal choice for cranes, municipal vehicles, forestry machinery, and other heavy-duty applications.

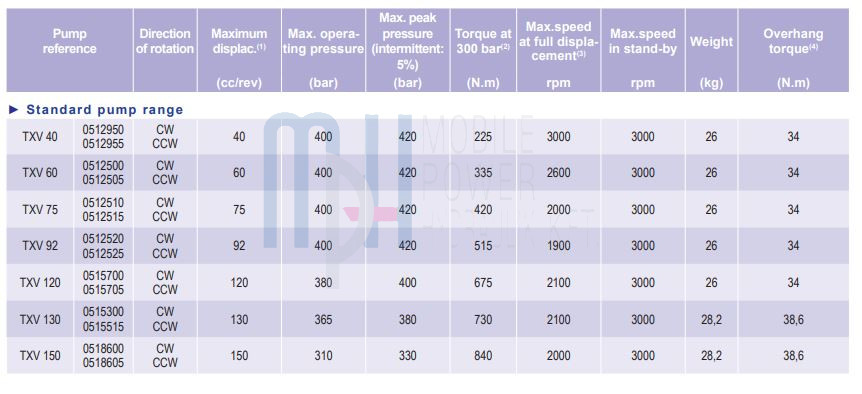

Main technical data:
- Part number: 0512955
- Maximum displacement: 40 cm³/rev
- Max. operating pressure: 400 bar
- Max. peak pressure: 420 bar
- Torque at 300 bar: 225 Nm
- Maximum speed (at full displacement): 3000 rpm
- Maximum speed (standby): 3000 rpm
- Weight: 26 kg
- Rotation: Counterclockwise (CCW)
Applications:
- Truck hydraulic systems

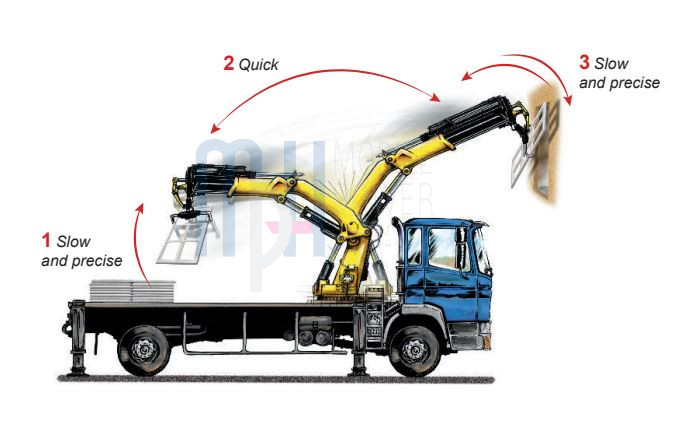

- Load handling and forestry cranes
- Municipal vehicles (waste collection, snow and ice removal machines)
- Construction and specialized hydraulic equipment
The Hydro Leduc TXV 40 (CCW) model offers energy-efficient operation, high reliability, and precise controllability for any professional hydraulic application.
