Hydro Leduc TXV 40 – Load Sensing variable displacement hydraulic pump (0512950)
Product description:

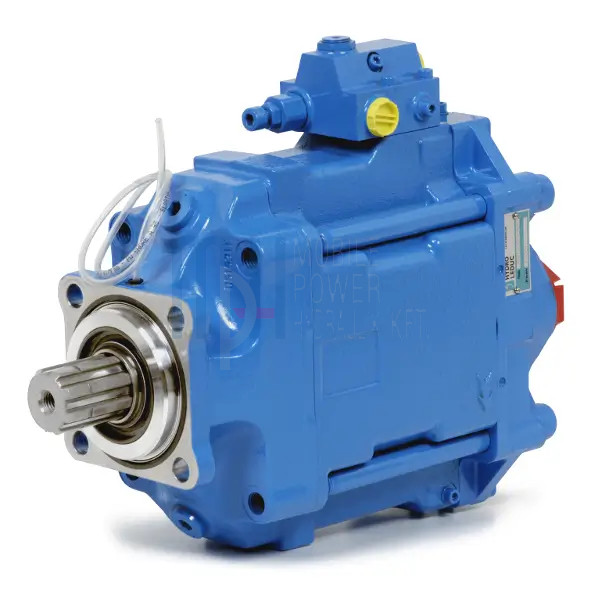

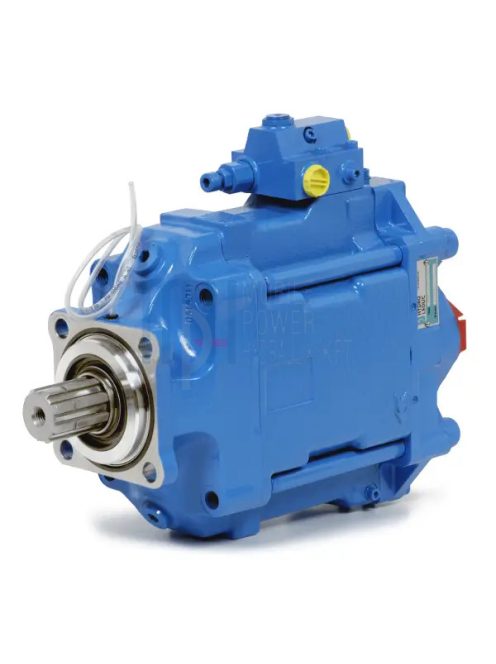

The Hydro Leduc TXV 40 is a compact, variable displacement, load-sensing controlled piston hydraulic pump. The pump adjusts the oil flow to match system load demand, reducing energy consumption, minimizing oil heating, and ensuring precise control. The TXV series was developed specifically for truck hydraulic applications, including cranes, municipal vehicles, forestry machinery, and other heavy-duty systems.

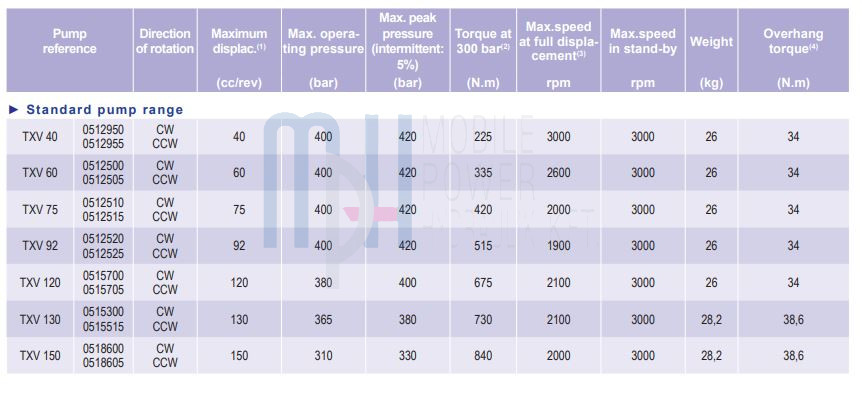

Main technical data:
- Part number: 0512950
- Maximum displacement: 40 cm³/rev
- Max. operating pressure: 400 bar
- Max. peak pressure: 420 bar
- Torque at 300 bar: 225 Nm
- Maximum speed (at full displacement): 3000 rpm
- Maximum speed (standby): 3000 rpm
- Weight: 26 kg
- Rotation: Clockwise (CW)
Applications:
- Truck hydraulic systems

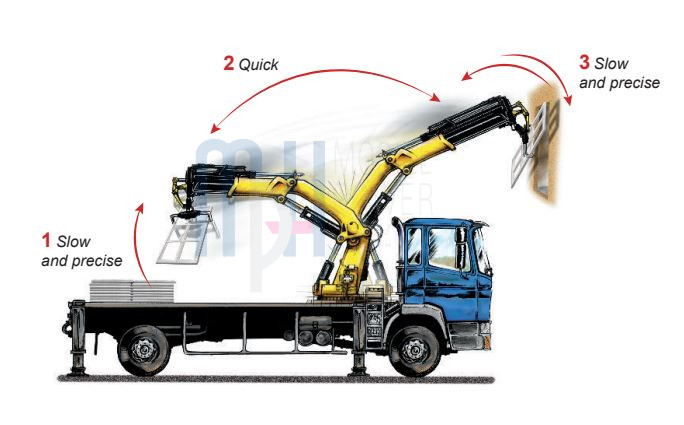

- Load handling and forestry cranes
- Municipal vehicles (waste collection, snow removal machines, salt spreaders)
- Construction and specialized machinery
The Hydro Leduc TXV 40 provides a reliable, compact, and energy-efficient solution for applications requiring precise flow control and high operating pressure.
