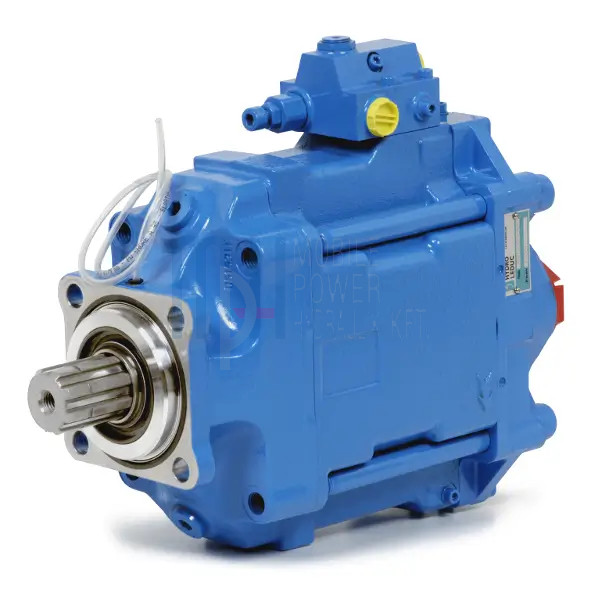

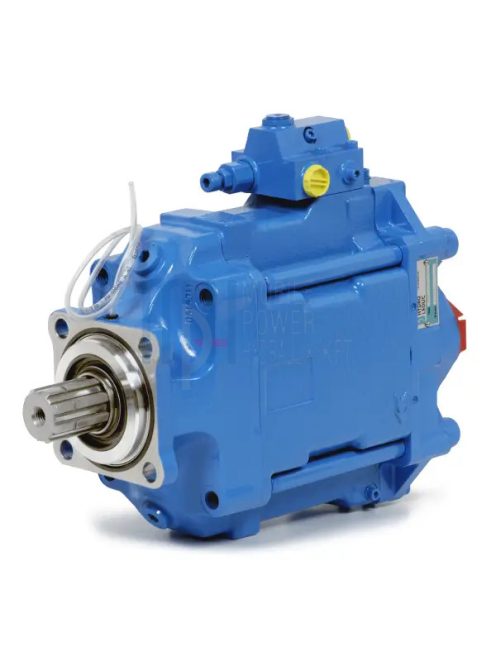

Hydro Leduc TXV 75 – Load Sensing variable displacement hydraulic pump (0512515)
Product description:

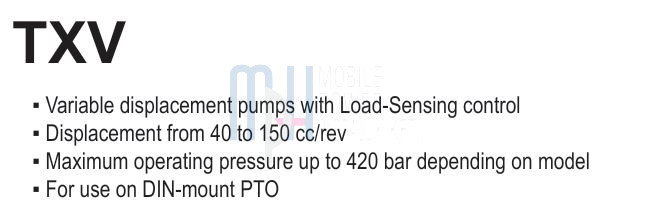

The Hydro Leduc TXV 75 is a high-performance, variable displacement, load-sensing controlled piston hydraulic pump. The system adjusts the delivered flow rate to match user demand, maximizing hydraulic efficiency and reducing energy consumption. The TXV series was designed specifically for truck hydraulic applications, making it particularly suitable for cranes, forestry machinery, municipal vehicles, and other heavy-duty hydraulic systems.

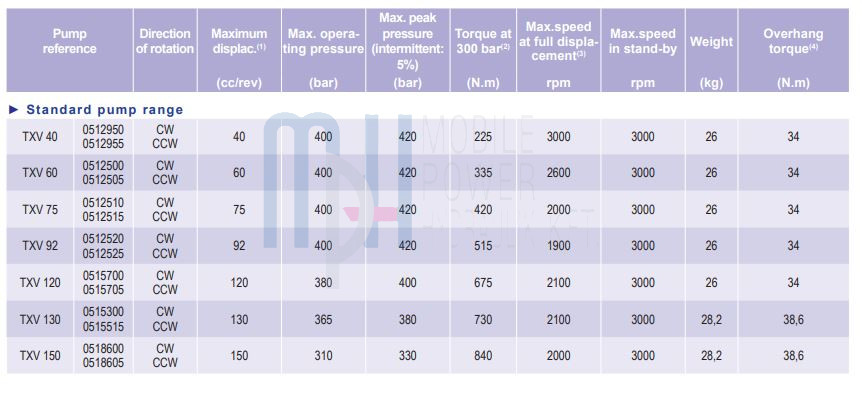

Main technical data:
- Part number: 0512515
- Maximum displacement: 75 cm³/rev
- Max. operating pressure: 400 bar
- Max. peak pressure: 420 bar
- Torque at 300 bar: 420 Nm
- Maximum speed (at full displacement): 2000 rpm
- Maximum speed (standby): 3000 rpm
- Weight: 26 kg
- Rotation: Counterclockwise (CCW)

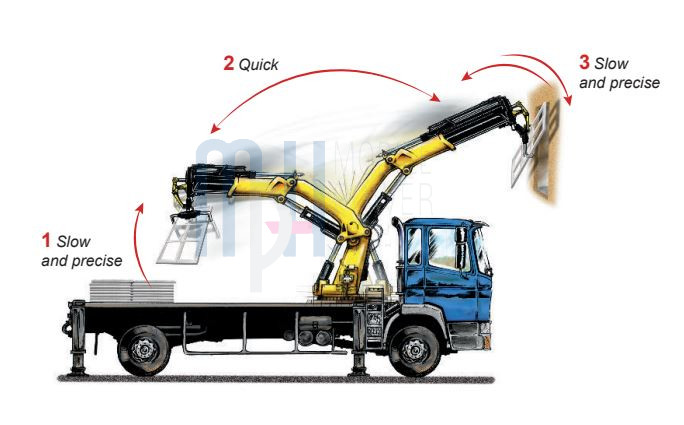

Applications:
- Truck hydraulic systems
- Forestry and timber handling cranes
- Municipal vehicles (waste collection, salt spreaders, snow removal machines)
- Construction and specialized machinery
The Hydro Leduc TXV 75 (CCW) model is an ideal choice where high flow, precise control, and energy-efficient operation are required.
