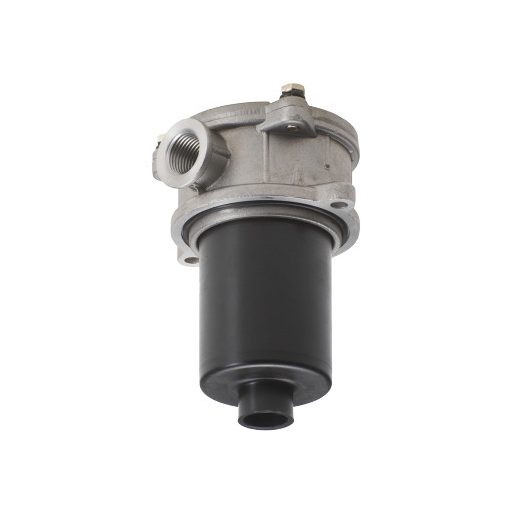

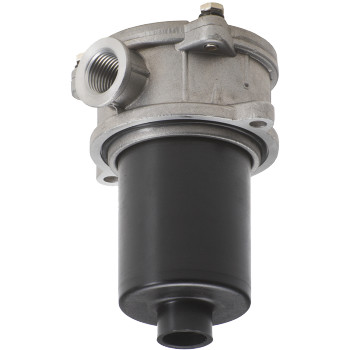

Semi-immersed tank return-line filter head, 1" BSP - FITR23
Product description:
This is a directly tank-mounted, semi-immersed hydraulic return-line filter head with 1" BSP connection. The product is compatible with FITCR23 filter element, has a maximum operating pressure of 8 bar, test pressure of 12 bar, and burst pressure of 16 bar. Suitable for HH, HL, HM and HV hydraulic fluids per ISO 2943, with an operating temperature range of -25 °C – +100 °C.

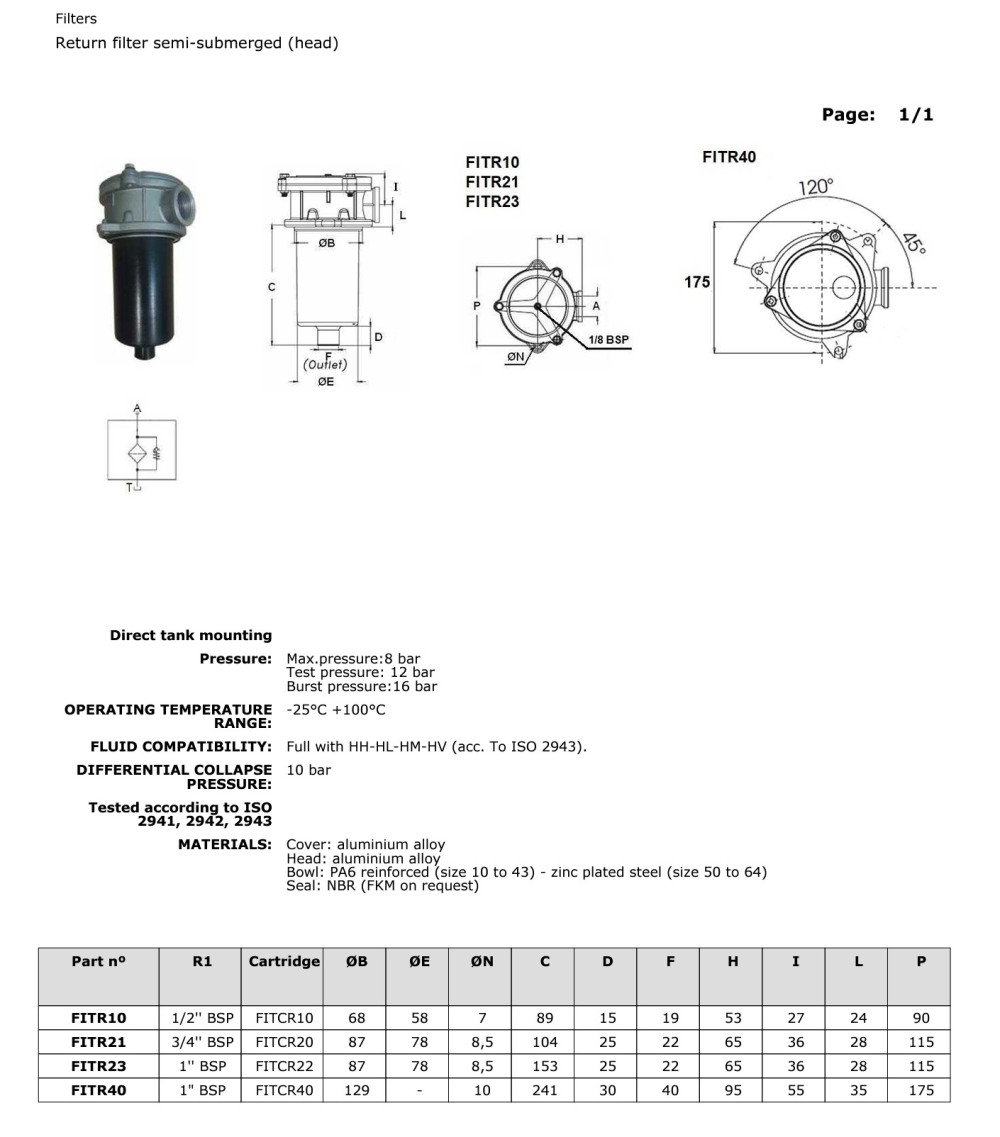

Technical specifications:
- Connection: 1" BSP
- Type: semi-immersed, directly tank-mounted filter head
- Compatible cartridge: FITCR23
- Maximum operating pressure: 8 bar
- Test pressure: 12 bar
- Burst pressure: 16 bar
- Filter element collapse pressure: 10 bar
- Compatible media: HH, HL, HM, HV (per ISO 2943)
- Operating temperature: -25 °C – +100 °C
- Cover material: aluminium alloy
- Head material: aluminium alloy
- Housing material: reinforced PA6
- Seal material: NBR
