RETURN FILTER CARTRIDGE, 25 µm, 250l/min

Name: RETURN FILTER CARTRIDGE, 25 µm, 250l/min
Brand: DICSA
SKU: HK_FITCR40C25B
Availability: InStock

RETURN FILTER CARTRIDGE, 25 Μm, 250l/min

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Max. flow rate: 250 l/min

Overall dimension: 41*100*220 (ØB*ØD*H)

Filtration fineness: 25 µm

Material: Paper

Manufacturer: DICSA

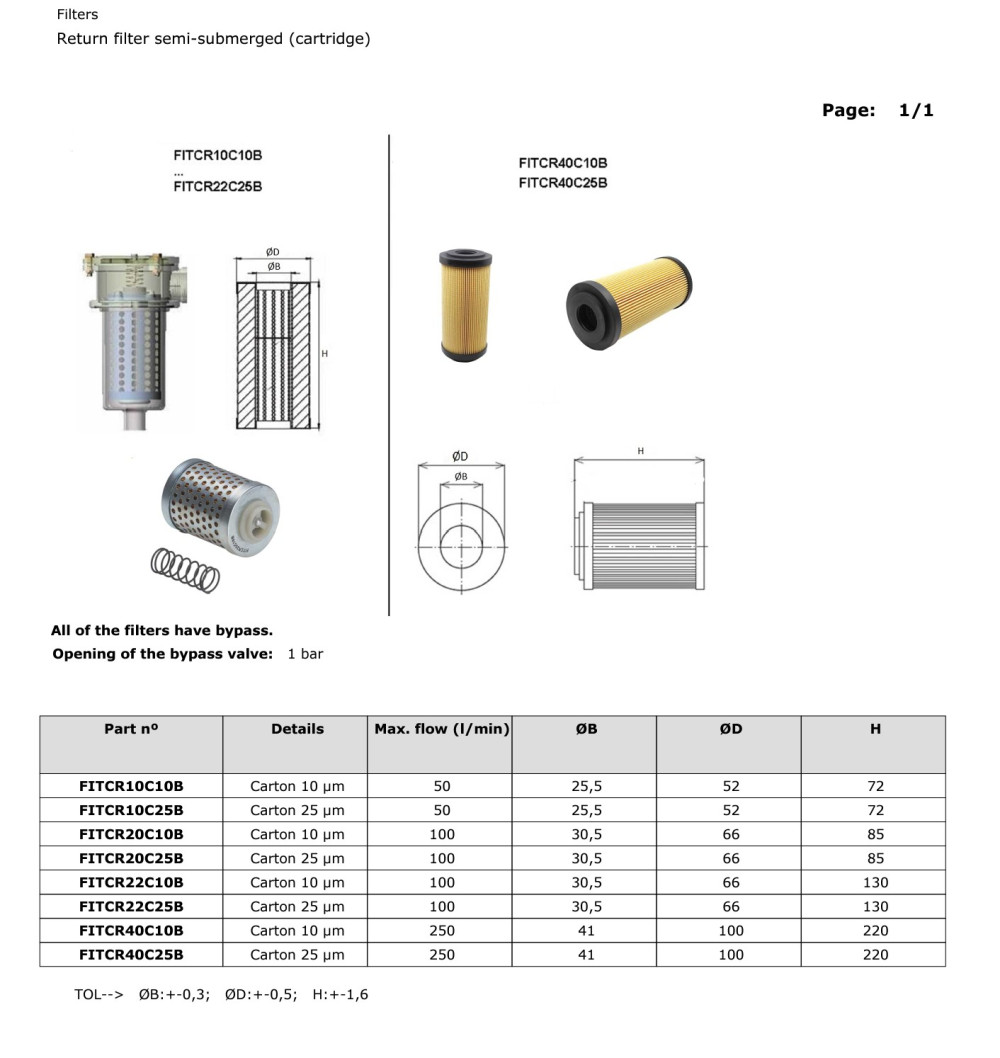

Datasheet: Click here to download

Manufacturer part number: FITCR40C25B

Other information: Every filter is equipped with by-pass. The by-pass opens at: 1 bar

Available to order

Item number:

HK_FITCR40C25B

Semi-immersed tank return-line filter element, 25 µm - FITCR40C25B

Product description:

This is a paper filter element with 25 µm filtration rating for semi-immersed hydraulic tank return-line filters. The filter element has a maximum flow rate of 250 l/min and features a bypass valve with an opening pressure of 1 bar.

Technical specifications:

Type: paper filter element
Filter rating: 25 µm
Maximum flow rate: 250 l/min
Bypass valve opening pressure: 1 bar

Data

Weight:

270 g/pc(s)

Details

Operating Principle

The return line filter element cleans the hydraulic oil as it flows back from the system to the reservoir. The 10-micron filter media captures even microscopic contaminants that could damage system components. This helps extend the lifespan of pumps, valves, and other critical parts. Its high flow capacity ensures efficient operation, even under demanding conditions.
