RETURN FILTER CARTRIDGE, 10 µm, 50l/min

Name: RETURN FILTER CARTRIDGE, 10 µm, 50l/min
Brand: DICSA
SKU: HK_FITCR10C10B
Availability: InStock

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Max. flow rate: 50 l/min

Overall dimension: 25,5*52*72 (ØB*ØD*H)

Filtration fineness: 10 µm

Material: Paper

Manufacturer: DICSA

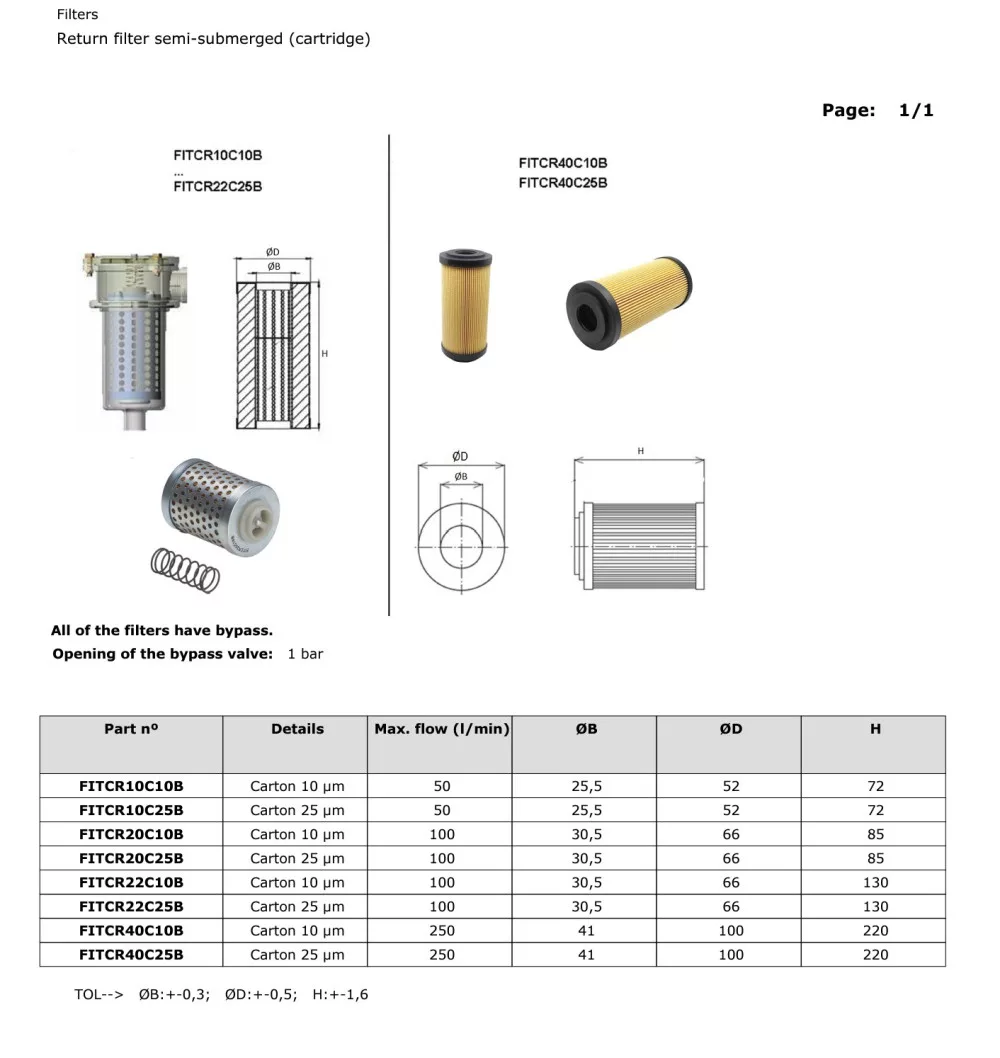

Datasheet: Click here to download

Manufacturer part number: FITCR10C10B

Other information: Every filter is equipped with by-pass. The by-pass opens at: 1 bar

Available to order

Item number:

HK_FITCR10C10B

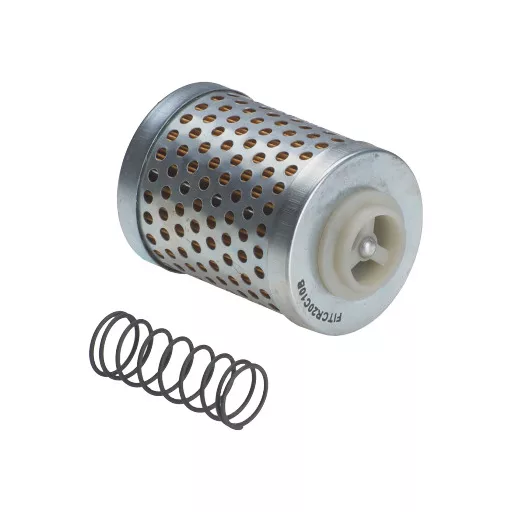

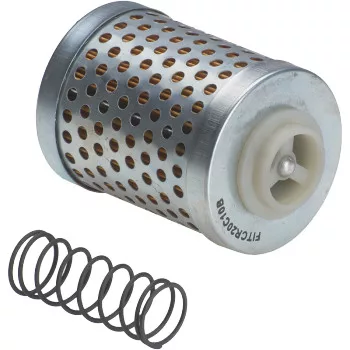

Semi-immersed tank return-line filter element, 10 µm - FITCR10C10B

Product description:

This is a paper filter element with 10 µm filtration rating for semi-immersed hydraulic tank return-line filters. The filter element has a maximum flow rate of 50 l/min and features a bypass valve with an opening pressure of 1 bar.

Technical specifications:

Type: paper filter element
Filter rating: 10 µm
Maximum flow rate: 50 l/min
Bypass valve opening pressure: 1 bar

Data

Weight:

100 g/pc(s)

Details

Operating Principle

The return line filter element cleans the hydraulic fluid before it flows back into the reservoir. As the oil passes through the filter media, particles larger than 25 microns are captured. This prevents contaminants from re-entering the system, providing long-term protection for pumps, valves, and other components. As a result, the system operates more efficiently and reliably, reducing the risk of unexpected downtime.
