RETURN FILTER CARTRIDGE, 10 µm, 250l/min

Name: RETURN FILTER CARTRIDGE, 10 µm, 250l/min
Brand: DICSA
SKU: HK_FITCR40C10B
Availability: InStock

RETURN FILTER CARTRIDGE, 10 Μm, 250l/min

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Max. flow rate: 250 l/min

Overall dimension: 41*100*220 (ØB*ØD*H)

Filtration fineness: 10 µm

Material: Paper

Manufacturer: DICSA

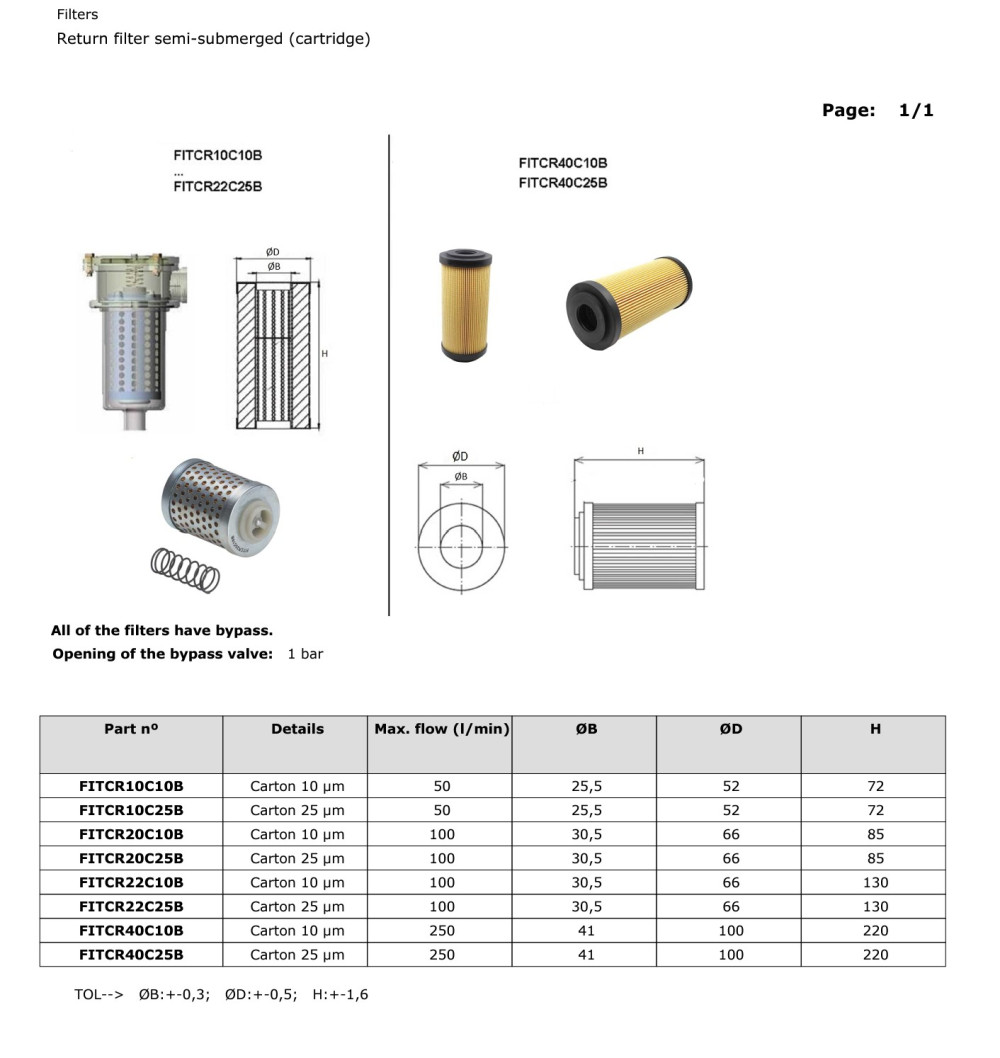

Datasheet: Click here to download

Manufacturer part number: FITCR40C10B

Other information: Every filter is equipped with by-pass. The by-pass opens at: 1 bar

Available to order

Item number:

HK_FITCR40C10B

Semi-immersed tank return-line filter element, 10 µm - FITCR40C10B

Product description:

This is a paper filter element with 10 µm filtration rating for semi-immersed hydraulic tank return-line filters. The filter element has a maximum flow rate of 250 l/min and features a bypass valve with an opening pressure of 1 bar.

Technical specifications:

Type: paper filter element
Filter rating: 10 µm
Maximum flow rate: 250 l/min
Bypass valve opening pressure: 1 bar

Data

Weight:

270 g/pc(s)

Details

Operating Principle

The filter element is positioned in the return line of the system and cleans the oil of fine contaminants generated during operation before it flows back into the reservoir. The 10-micron filtration level is especially suitable for protecting systems that operate with precision components. It helps prevent premature wear or failure of pumps, valves, and other sensitive hydraulic elements. As a result, it reduces maintenance costs and increases operational reliability.
