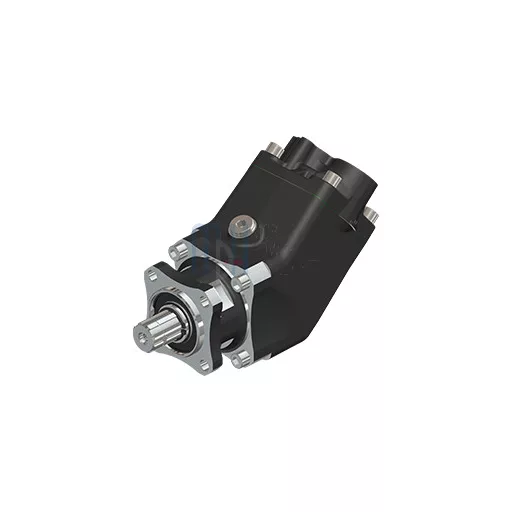

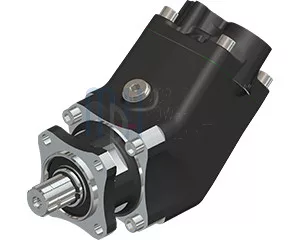

OMFB PISTON HYDRAULIC PUMP HDS-96
OMFB HDS/MDS series pumps
Type: bent axis piston design. Unidirectional, displacement 12–108 cm³/rev. Versions: UNI, 4-hole ISO, SAE-B and SAE-C.
HDS features: high pressure resistance, reinforced bearings. Designed for high-pressure duty, e.g. crane trucks and container transporters.
MDS: an excellent choice for simpler applications, e.g. tipping platform trucks and dump trucks.
ON REQUEST, WE CONVERT THE DIRECTION OF ROTATION TO LEFT-HAND. PLEASE INDICATE THIS WHEN PLACING YOUR ORDER!
Operating Principle
Axially arranged pistons inside the unit ensure that with every rotation the pump draws in oil and delivers it with a constant flow rate. The bent axis design allows for efficient self-priming even at high speeds. Precise internal synchronization guarantees smooth operation. As a result, the pump delivers stable performance even under high pressure, rapid load changes, and temperature fluctuations.
