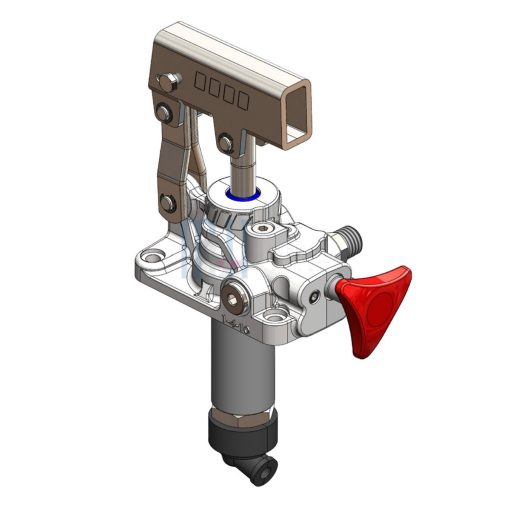

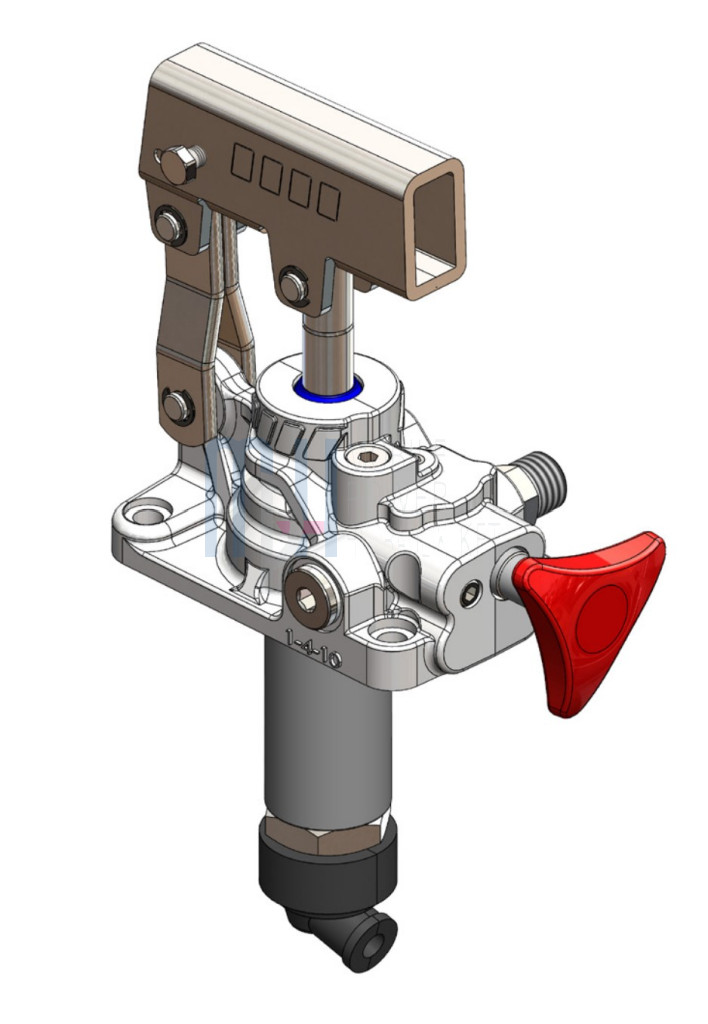

Hand pump body 10600400010
Product description:
The 10600400010 is an OMFB-manufactured PMS FULCRO 25 type, double-acting hand pump body for single-acting cylinders, designed for mounting on an existing tank — supplied without tank and lever. The pump delivers oil on both pull and push strokes by moving the lever in both directions, and is fitted with a conical drain valve. Its full stroke displacement is 25 cm³ and the maximum pressure setting is 300 bar. It can be fitted with three different levers for various applications, and is ideal as an emergency manual control lever for hydraulic power units with single-acting hydraulic cylinders. The housing is made of ductile cast iron with zinc coating and seal, and the piston rod is nickel-plated.
Key features:
- Order number: 10600400010
- Manufacturer: OMFB
- Type: PMS FULCRO 25 – hand pump body (without lever and tank)
- Application: single-acting hydraulic cylinders
- Full stroke displacement: 25 cm³ (pull: 13.4 cm³ / push: 11.6 cm³)
- Max. pressure setting: 300 bar
- Weight: 2.9 kg
- Operating temperature: -15°C – +110°C
- Recommended viscosity: VG ISO 5–100 mm²/s
- Compatible hydraulic oil: mineral and synthetic (with NBR, FKM, FPM, Nylon seals)
- Seal kit order number: 10690000453
