Hand pump body 10601900013
Product description:

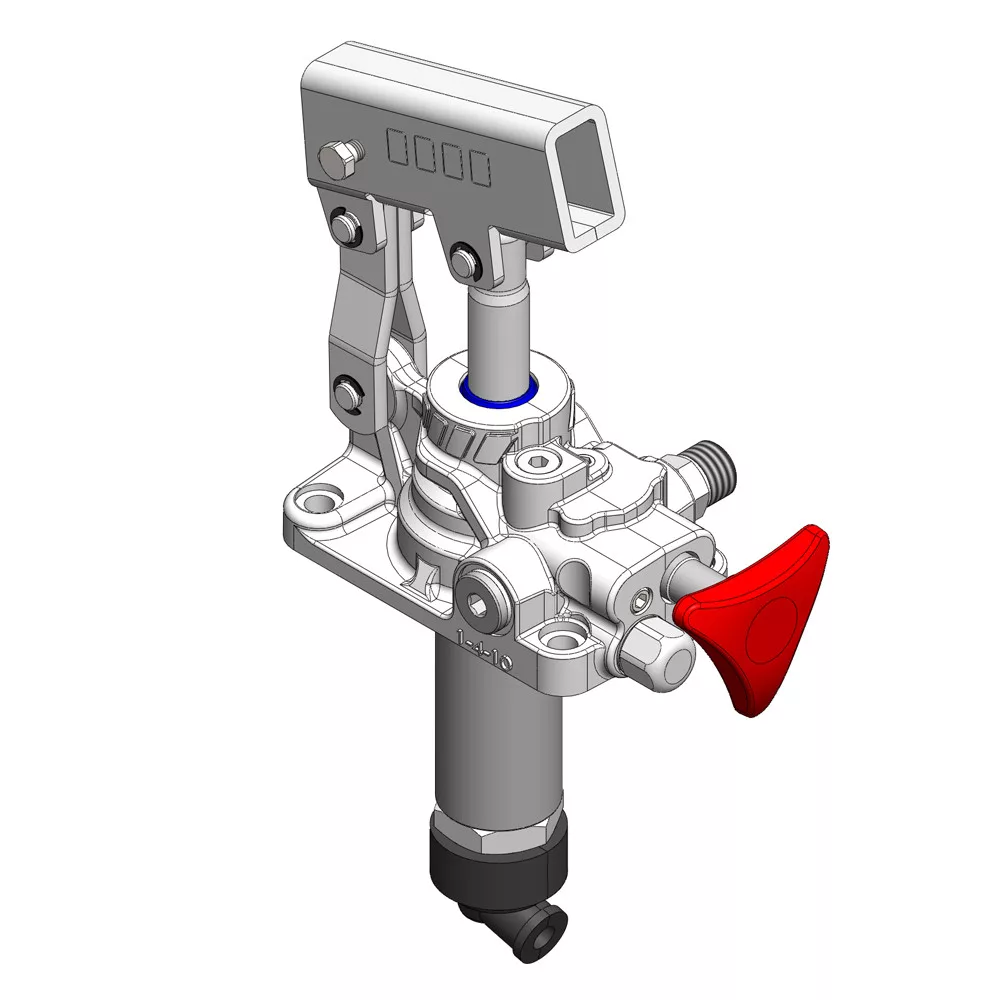

The 10601900013 is an OMFB-manufactured PMS+VS FULCRO 12 type, double-acting hand pump body for single-acting cylinders, designed for mounting on an existing tank — supplied without tank and lever. The pump delivers oil on both pull and push strokes by moving the lever in both directions, and features a built-in pressure relief valve (VS). Its full stroke displacement is 12 cm³, the standard pressure setting is 160 bar, and the maximum pressure setting is 300 bar. It is primarily used as an emergency manual control lever for hydraulic power units with single-acting hydraulic cylinders. The housing is made of ductile cast iron with zinc coating and seal, and the piston rod is nickel-plated.
Key features:
- Order number: 10601900013
- Manufacturer: OMFB
- Type: PMS+VS FULCRO 12 – hand pump body (without lever and tank)
- Application: single-acting hydraulic cylinders
- Full stroke displacement: 12 cm³ (pull: 6.1 cm³ / push: 5.9 cm³)
- Standard pressure setting: 160 bar
- Max. pressure setting: 300 bar
- Weight: 2.9 kg
- Operating temperature: -15°C – +110°C
- Recommended viscosity: VG ISO 5–100 mm²/s
- Compatible hydraulic oil: mineral and synthetic (with NBR, FKM, FPM, Nylon seals)
- Seal kit order number: 10690000408
