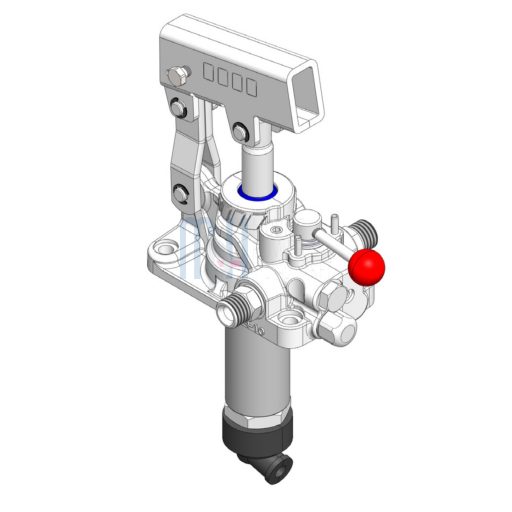

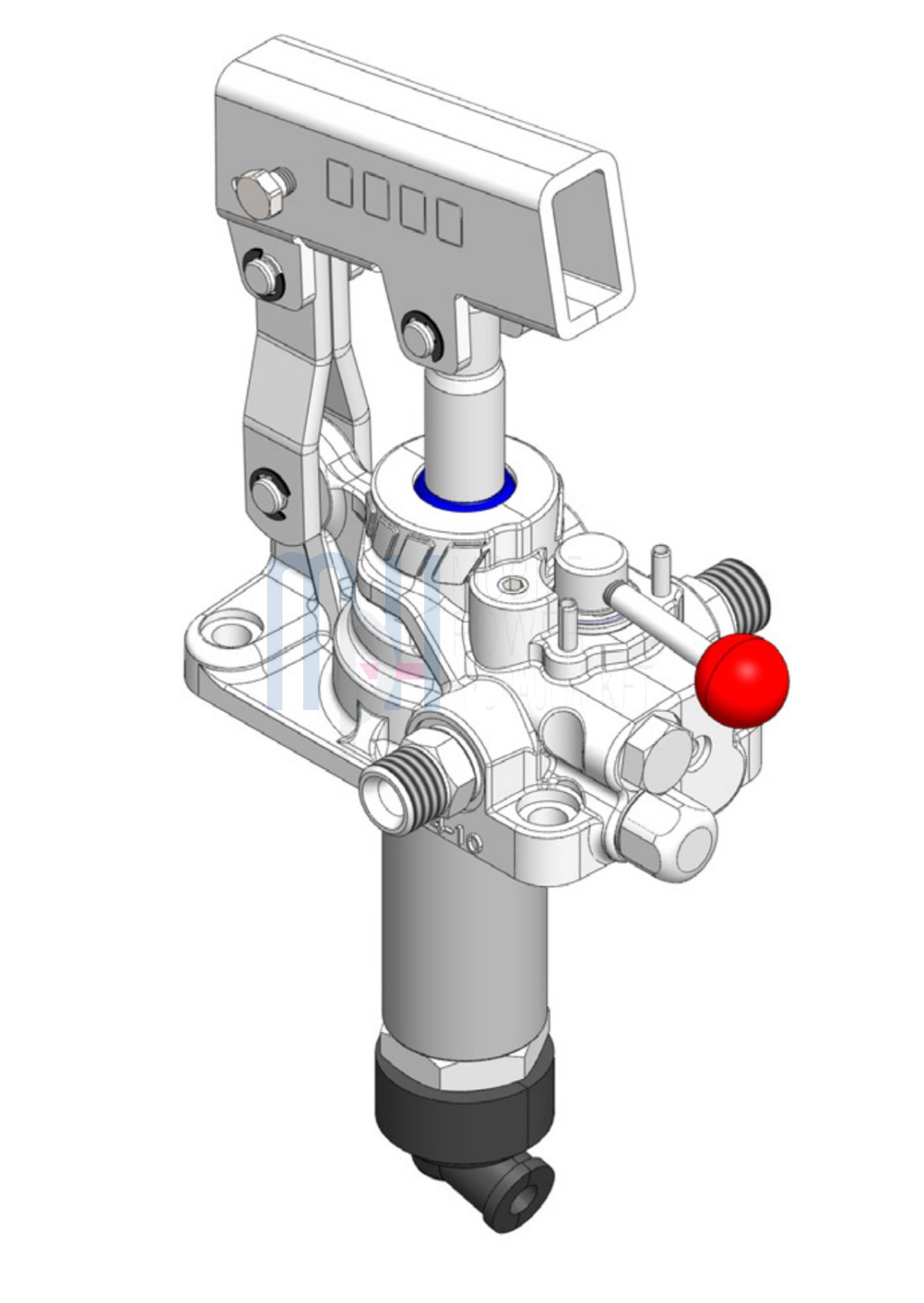

Hand pump body 10602100019
Product description:
The 10602100019 is an OMFB-manufactured PMI+VS FULCRO 12 type, double-acting hand pump body designed for mounting on an existing tank — supplied without tank and lever. The pump delivers oil on both pull and push strokes by moving the lever in both directions, making it suitable for manual control of double-acting cylinders. It features a built-in pressure relief valve and a directional control valve. Its full stroke displacement is 12 cm³, the standard pressure setting is 160 bar, and the maximum pressure setting is 300 bar. It is primarily used as an emergency manual control lever for hydraulic power units. The housing is made of ductile cast iron with zinc coating and seal, and the piston rod is nickel-plated.
Key features:
- Order number: 10602100019
- Manufacturer: OMFB
- Type: PMI+VS FULCRO 12 – hand pump body (without lever and tank)
- Full stroke displacement: 12 cm³ (pull: 6.1 cm³ / push: 5.9 cm³)
- Standard pressure setting: 160 bar
- Max. pressure setting: 300 bar
- Weight: 2.8 kg
- Operating temperature: -15°C – +110°C
- Recommended viscosity: VG ISO 5–100 mm²/s
- Compatible hydraulic oil: mineral and synthetic (with NBR, FKM, FPM, Nylon seals)
- Seal kit order number: 10690000551
