Hydraulic hand pump BMT20
Product description:

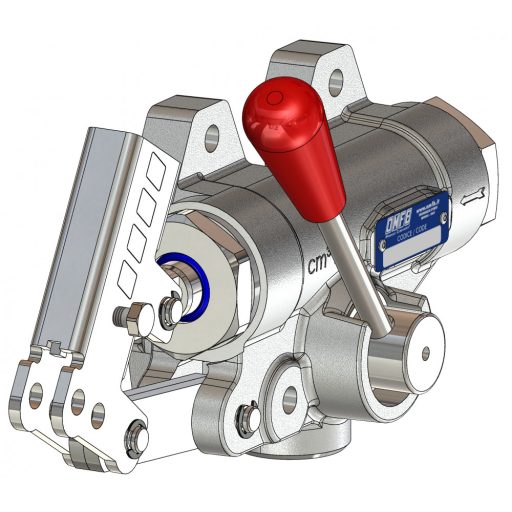

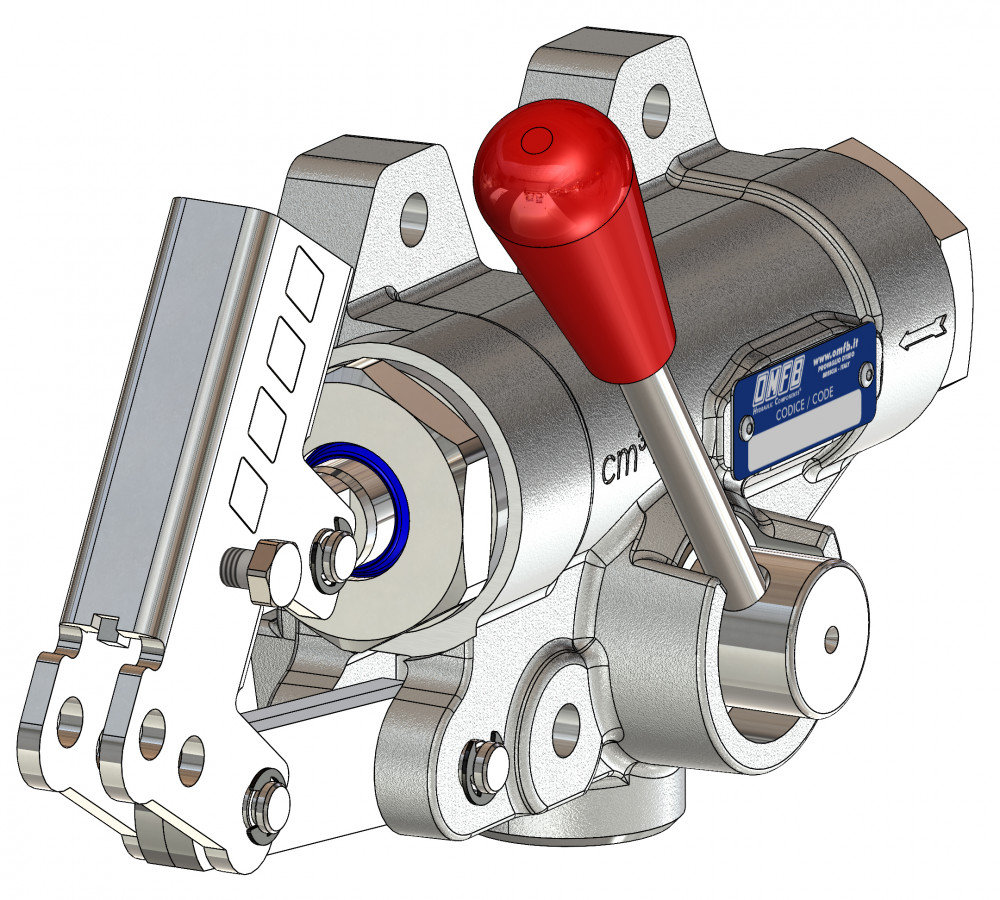

The BMT20 is a TrAle-manufactured, single-acting hydraulic hand pump. The pump builds up pressure by moving the lever in both directions, reaching a maximum operating pressure of 250 bar, with a stroke displacement of 20 cm³. Its compact design and BSP 1/2" connection make it easy to integrate into hydraulic systems — it is typically used for manual control of jacks, presses, and other single-acting hydraulic cylinders. The nozzle (hose fitting) is not included and can be ordered as an optional accessory.
Key features:
- Order number: BMT20
- Manufacturer: TrAle
- Type: single-acting hand pump with side-mounted tank
- Max. operating pressure: 250 bar
- Stroke displacement: 20 cm³
- Connection: BSP 1/2"
- Lever operating direction: both directions
- Hose fitting (nozzle): not included (optional)
