NG6 subplate PBKV-6-38TV
Product description:

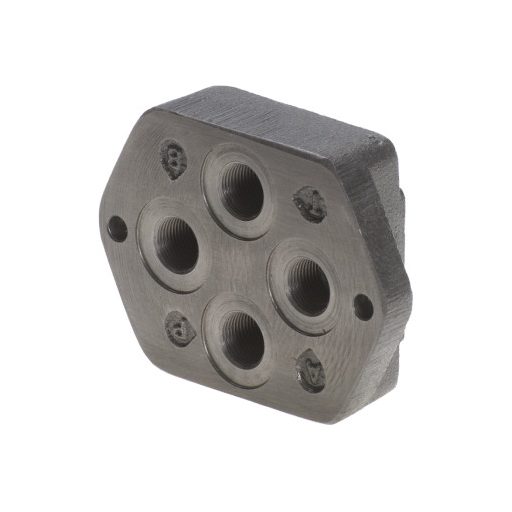

The PBKV-6-38TV is a cast steel subplate designed for NG6 directional control valves, with P and T ports in vertical (top) configuration – which in many cases allows a more favorable piping arrangement. The A and B work ports are also positioned vertically. The 3/8" BSP thread size fits the most commonly used piping systems, with a maximum operating pressure of 350 bar. The design is without a pressure relief valve, so system pressure protection can be achieved with an external element. The subplate directly accepts the NG6 standard directional control valve, with M5 mounting bolts.
Key features:
- Part number: PBKV-6-38TV
- Type: NG6 subplate, without pressure relief valve
- Size: NG6
- Port thread (P, T, A, B): 3/8" BSP
- P and T port configuration: vertical
- A and B port configuration: vertical
- Max. operating pressure: 350 bar
- Material: cast steel
