NG6 solenoid valve KVNG6-1-110CA-H
Product description:

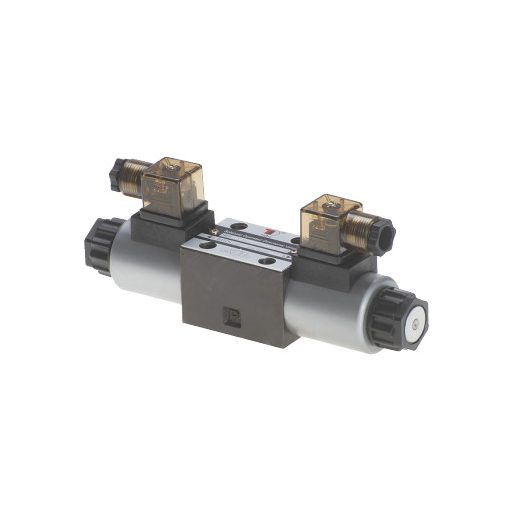

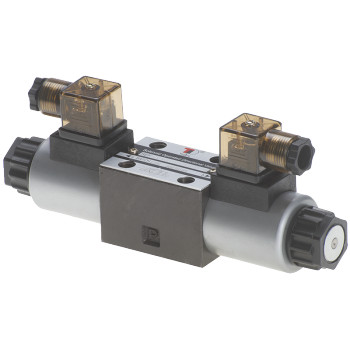

The KVNG6-1-110CA-H is a TrAle manufactured NG6 size hydraulic solenoid valve with 1 "E" spool geometry, 110V AC / 50 Hz supply voltage. Its maximum flow rate is 60 l/min, with operating pressure on ports A, B and P of 315 bar, and 160 bar on the T (return) port. Its cast iron housing has IP 65 protection, and the connector features an LED indicator light. The package also includes 4 pcs M5×45 mm mounting bolts. Standard NG6 mounting interface design, suitable for direct replacement.
Key features:
- Order number: KVNG6-1-110CA-H
- Manufacturer: TrAle
- Type: NG6 solenoid valve, 1 "E" spool geometry
- Supply voltage: 110V AC / 50 Hz
- Max. flow rate: 60 l/min
- Max. operating pressure (A, B, P): 315 bar
- Max. operating pressure (T): 160 bar
- Housing material: cast iron
- Protection class: IP 65
- Connector: with LED indicator light
- Included mounting bolts: 4× M5×45 mm
