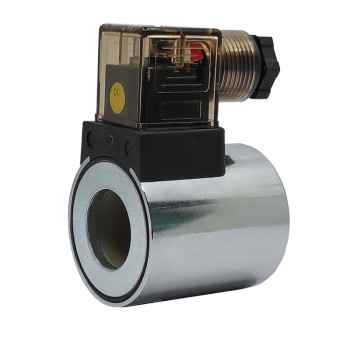

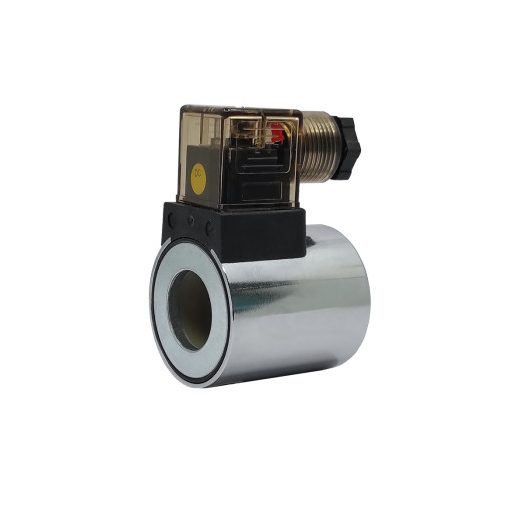

NG6 solenoid coil MR-6-220CA H
Product description:
The MR-6-220CA H is an NG6 size replacement solenoid coil designed for 220V AC / 50 Hz voltage, compatible with NG6 standard hydraulic directional control valves. The 100% duty cycle (ED 100%) enables continuous operation without the risk of coil overheating – a particularly important factor in industrial applications. Power consumption is max. 30 W, and insulation class F ensures long service life and heat resistance. The IP65 protection class provides adequate protection against dust and water jets, with the connector included in the package. Maximum operating pressure is 210 bar.
Key features:
- Part number: MR-6-220CA H
- Size: NG6
- Supply voltage: 220V AC
- Frequency: 50 Hz
- Power consumption: ≤30 W
- Duty cycle: ED 100% (continuous)
- Insulation class: F
- Max. operating pressure: 210 bar
- Protection class: IP65
- Connector: included
