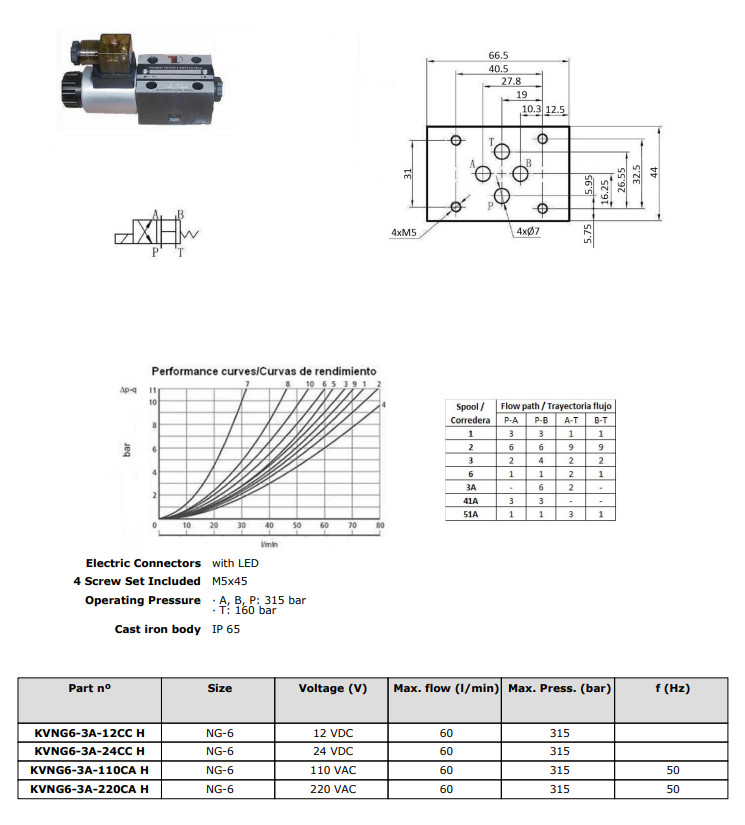

Directional control valve KVNG6-3A-24CC H
Product description:

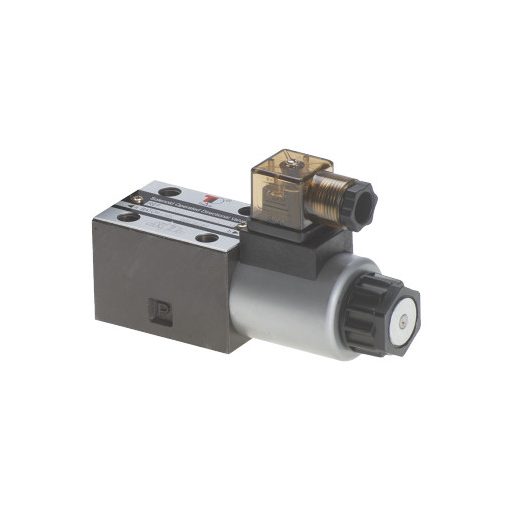

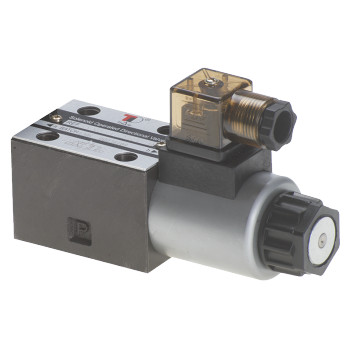

The KVNG6-3A-24CC H is an NG6 size, single solenoid hydraulic directional control valve with 3A spool configuration, designed for industrial and mobile hydraulic systems. A 24V DC voltage operated solenoid ensures reliable switching, and the built-in LED indicator light shows at a glance whether the valve is in active state. The cast iron housing offers IP65 protection class, making it suitable for dusty or wet industrial environments without any issues. It withstands a maximum operating pressure of 315 bar on ports A, B and P, with 160 bar on port T – more than sufficient for most heavy-duty and industrial applications. Maximum 60 l/min flow rate, and the M5×45 mounting bolt kit required for installation is included in the package.
Key features:
- Part number: KVNG6-3A-24CC H
- Size: NG6
- Spool type: 3A
- Supply voltage: 24V DC
- Max. flow rate: 60 l/min
- Max. operating pressure (A, B, P): 315 bar
- Max. operating pressure (T): 160 bar
- Housing material: cast iron
- Protection class: IP65
- Connector: with LED indicator light
- Mounting bolt kit: M5×45 (included)
