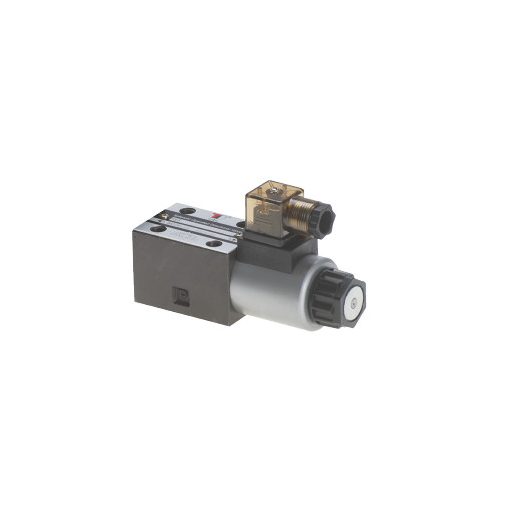

Directional control valve KVNG10-41A-12CC H
Product description:
The KVNG10-41A-12CC H is an NG10 size, single solenoid hydraulic directional control valve with 41A spool configuration, designed for industrial and mobile hydraulic systems requiring higher flow rates. A 12V DC voltage operated solenoid ensures reliable switching, and the built-in LED indicator light shows at a glance whether the valve is in active state. The cast iron housing provides long service life and mechanical strength even under demanding operating conditions. It withstands a maximum operating pressure of 315 bar on ports A, B and P, with 160 bar on port T. Maximum 120 l/min flow rate, and the M6×40 mounting bolt kit required for installation is included in the package.
Key features:
- Part number: KVNG10-41A-12CC H
- Size: NG10
- Spool type: 41A
- Supply voltage: 12V DC
- Max. flow rate: 120 l/min
- Max. operating pressure (A, B, P): 315 bar
- Max. operating pressure (T): 160 bar
- Core diameter (Ø): 31,4 mm
- Housing material: cast iron
- Connector: with LED indicator light
- Mounting bolt kit: M6×40 (included)
