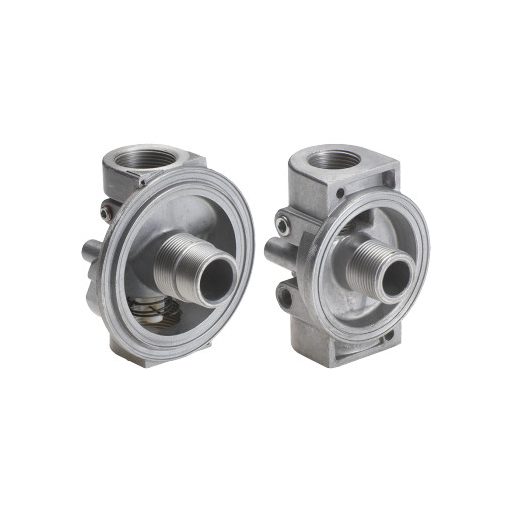

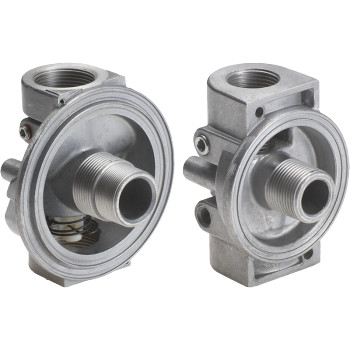

Return line, threaded in-line filter housing, 1 1/4" BSP - FITA20/21R
Product Description:
This is an in-line filter housing with cartridge insert designed for return line applications, with 1 1/4" BSP connection. The filter housing is compatible with the FITCA20/21 filter cartridge and features a cast aluminium head. The built-in bypass valve opening pressure is 1 bar, maximum operating pressure is 10 bar, test pressure is 15 bar, and burst pressure is 20 bar. The maximum allowable operating temperature of the product is 80 °C.
Technical Data:
- Connection: 1 1/4" BSP
- Design: cartridge "In Line" filter housing
- Application: return line
- Filter cartridge: FITCA20/21
- Bypass valve opening pressure: 1 bar
- Maximum operating pressure: 10 bar
- Test pressure: 15 bar
- Burst pressure: 20 bar
- Maximum temperature: 80 °C
- Head material: cast aluminium
