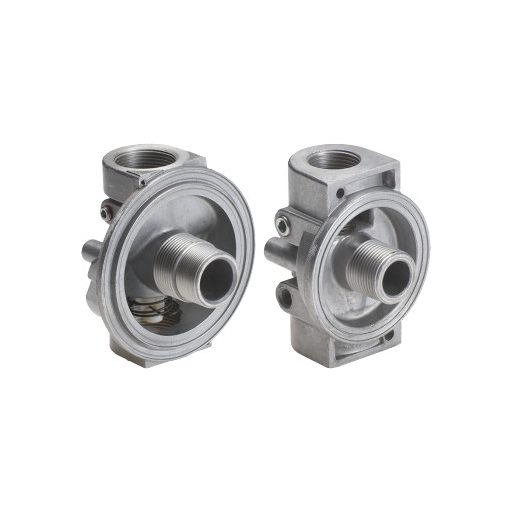

Suction line, threaded in-line filter housing, 1 1/4" BSP - FITA20/21A
Product Description:
This is an in-line filter housing with cartridge insert designed for suction line applications, with 1 1/4" BSP connection. The filter housing is compatible with the FITCA20/21 filter cartridge and features a cast aluminium head. The built-in bypass valve opening pressure is 0.2 bar, maximum operating pressure is 10 bar, test pressure is 15 bar, and burst pressure is 20 bar. The maximum allowable operating temperature of the product is 80 °C.
Technical Data:
- Connection: 1 1/4" BSP
- Design: cartridge "In Line" filter housing
- Application: suction line
- Filter cartridge: FITCA20/21
- Bypass valve opening pressure: 0.2 bar
- Maximum operating pressure: 10 bar
- Test pressure: 15 bar
- Burst pressure: 20 bar
- Maximum temperature: 80 °C
- Head material: cast aluminium
