DRUM SC200 SCREW COMPRESSOR, GARDNER DENVER

Drum Sc200 Screw Compressor, Gardner Denver
Drum Sc200 Screw Compressor, Gardner Denver
Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.
Manufacturer: Gardner Denver (DRUM)
Application: For liquid bulk materials
Performance: Maximum 156 m³/h (at 2.5 bar)
Materials: Preferred: liquid food, solvents, acids, alkalis, lower-viscosity materials. Alternative: hot bitumen, resins.
Available to order
Item number:
K_SC200_PACK2

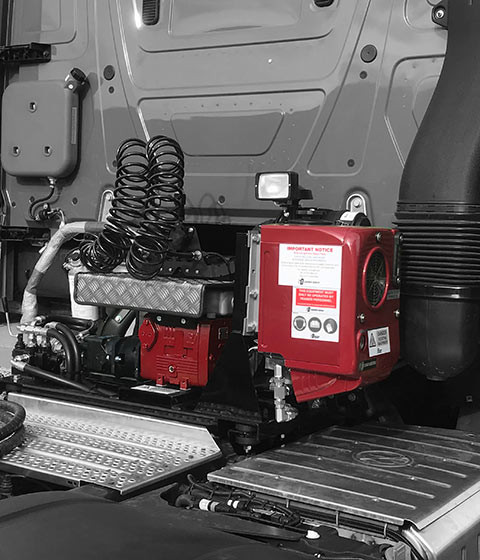

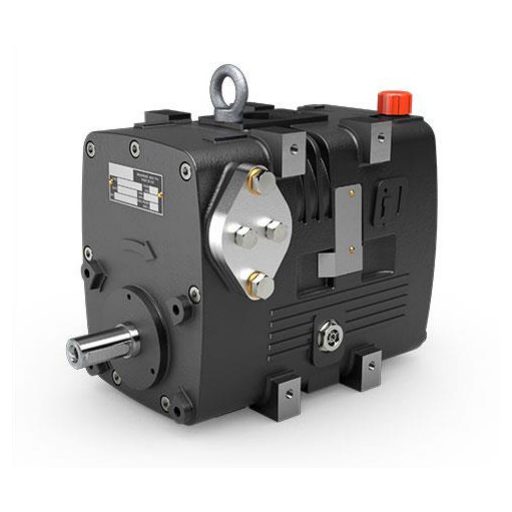

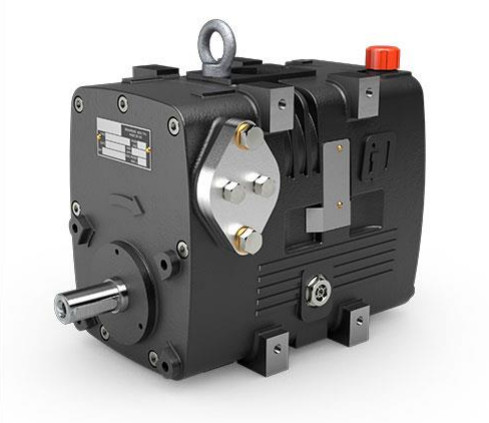

The DRUM SC200 screw compressor is a compact, oil-free, and contactless unit designed for pressure discharge of liquids from tanker trucks without contamination. It has no wearing parts in the main compression chamber, resulting in low maintenance and long service life.

Its lightweight, space-saving design helps increase the vehicle’s payload capacity. With a performance of up to 156 m³/h at 2.5 bar, it delivers fast and reliable unloading.



Data
Weight:
120 kg/pc(s)
Details

Operating Principle

The compressor uses two synchronized rotating screws that compress air in variable-volume chambers created during rotation. Its oil-free, non-contact design ensures that no oil contaminates the discharged air or liquid. The air-cooled, compact housing eliminates the need for an oil cooler and supports multiple drive options including PTO, hydraulic, electric, or engine-driven systems. This makes it easy to install even in vehicles with limited chassis space.
