DRUM GD175 ROTARY VANE COMPRESSOR, GARDNER DENVER

Name: DRUM GD175 ROTARY VANE COMPRESSOR, GARDNER DENVER
Brand: Gardner Denver (DRUM)
SKU: K_GD175
Availability: InStock

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Manufacturer: Gardner Denver (DRUM)

Datasheet: GD175 manufacturer brochure

Application: For liquid bulk materials

Performance: Maximum 150 m³/h (at 2.5 bar)

Materials: Preferred: liquid food, solvents, acids, alkalis, other chemicals, lower-viscosity materials. Alternative: hot bitumen, resins.

Available to order

Item number:

K_GD175

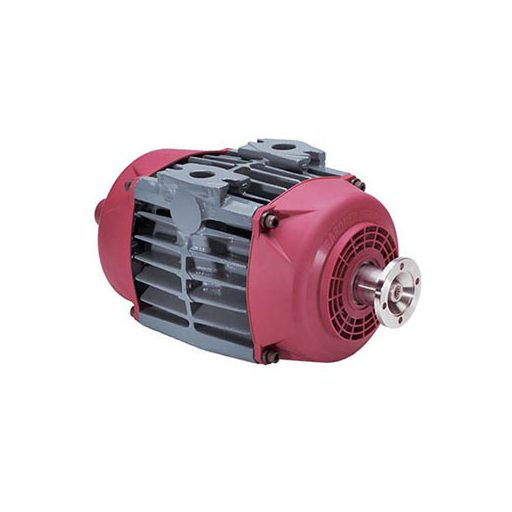

The DRUM GD175 compressor is a lightweight, compact, oil-free rotary vane air unit designed for quick and clean discharge of liquids from tanker trucks. Its stainless steel rotor and anodized aluminum housing provide excellent corrosion resistance with low maintenance needs.

Delivering up to 150 m³/h airflow at 2.5 bar, it supports fast and efficient unloading cycles. The dual-shaft design and flexible installation options make it adaptable to a wide range of vehicle configurations.

Data

Weight:

32 kg/pc(s)

Details

Operating Principle

The GD175 works with an eccentrically mounted rotor that creates variable-volume chambers as it rotates, compressing and moving air through the system. Its oil-free construction ensures the air remains uncontaminated, making it suitable for transferring sensitive substances like food-grade materials, chemicals, or bitumen.

The use of corrosion-resistant materials ensures durability even under tough environmental conditions. The unit can be powered directly by the vehicle and installed in multiple orientations for easy integration.
