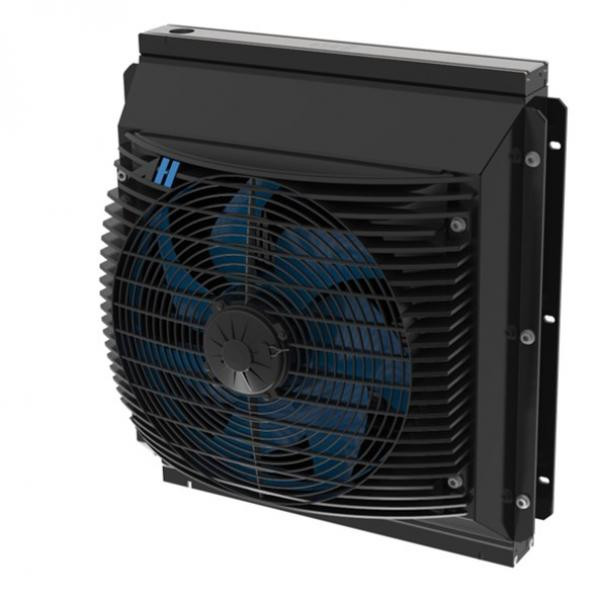

Oil/air cooler ASATT25RD02
Product description:
The ASATT25RD02 is the largest standard-size, 24V DC-driven oil/air cooler in the ASA Hydraulik TT series, representing the top of the range among DC variants. It is ideal for high-performance mobile hydraulic systems requiring maximum cooling capacity — for example on heavy machinery, industrial vehicles, forestry and construction equipment. Particularly noteworthy is its value-for-performance ratio: it achieves 0.88 kg/s airflow with just a 0.30 kW motor and 11.4 A current draw, which is gentle on the 24V on-board electrical system. The large radiator surface, the patented asa rail connection system, the corrugated fin aluminium radiator, and the IP 68-rated fan together make this model the most versatile high-performance choice in the TT series.
Key features:
- Type: TT 25 rail 24V DC
- Order number: ASATT25RD02
- Supply voltage: 24V DC
- Motor power: 0.30 kW
- Current draw: 11.4 A
- Protection class: IP 68
- Airflow: 0.88 kg/s
- Noise level: 78 dB(A)
- Oil connection: Ø30 mm (2x)
- Max. operating pressure: 26 bar (static)
- Operating temperature range: -20°C – +80°C (oil inlet temperature)
- Radiator material: aluminium, corrugated fin
- Dimensions (A×B×D): 605 × 555 × 422 mm
- Weight: 22.7 kg
- Mounting system: asa rail (2x)
- Connector kit BSP 1": ILLZSET5G25 (available separately)
- Connector kit BSP 1¼": ILLZSET5G32 (available separately)
- Optional internal bypass valve: 2 bar (order number: ASATT25RD02BP)
