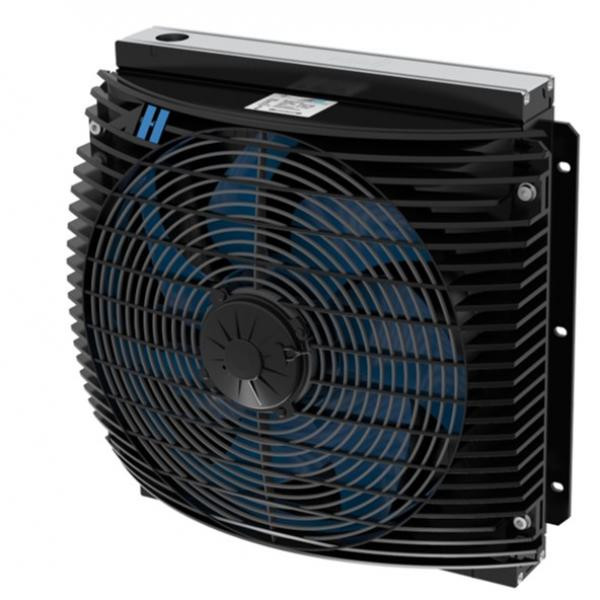

Oil/air cooler ASATT16RD02
Product description:
The ASATT16RD02 is a high-performance, 24V DC-driven oil/air cooler from the ASA Hydraulik TT series, designed for efficient thermal management of more demanding hydraulic systems. It delivers the most value on larger work machines, commercial vehicles, and demanding mobile industrial applications where the airflow of smaller models is no longer sufficient. Notably, it achieves an airflow of 0.75 kg/s with just a 0.30 kW motor and 11.4 A current draw — meaning cooling capacity nearly doubles compared to the TT 11 model, while the electrical load remains identical. The patented asa rail connection system, the corrugated fin aluminium radiator, and the IP 68-rated fan also guarantee durable, reliable operation in dusty, wet environments alike.
Key features:
- Type: TT 16 rail 24V DC
- Order number: ASATT16RD02
- Supply voltage: 24V DC
- Motor power: 0.30 kW
- Current draw: 11.4 A
- Protection class: IP 68
- Airflow: 0.75 kg/s
- Noise level: 79 dB(A)
- Oil connection: Ø30 mm (2x)
- Max. operating pressure: 26 bar (static)
- Operating temperature range: -20°C – +80°C (oil inlet temperature)
- Radiator material: aluminium, corrugated fin
- Dimensions (A×B×D): 465 × 460 × 328 mm
- Weight: 14.9 kg
- Mounting system: asa rail (2x)
- Connector kit BSP 1": ILLZSET5G25 (available separately)
- Connector kit BSP 1¼": ILLZSET5G32 (available separately)
- Optional internal bypass valve: 2 bar (order number: ASATT16RD02BP)
