ASA OIL COOLER TT11 RAIL 24V

Asa Oil Cooler Tt11 Rail 24V
Asa Oil Cooler Tt11 Rail 24V Asa Oil Cooler Tt11 Rail 24V Asa Oil Cooler Tt11 Rail 24V
Voltage (V): 24
Operating pressure: 26 bar (static)
Operating temperature: -20°C to +80°C (oil temperature)
Manufacturer: ASA
Manufacturer part number: ASATT11RD02
In stock
551+VAT
Item number:
HK_ASATT11RD02

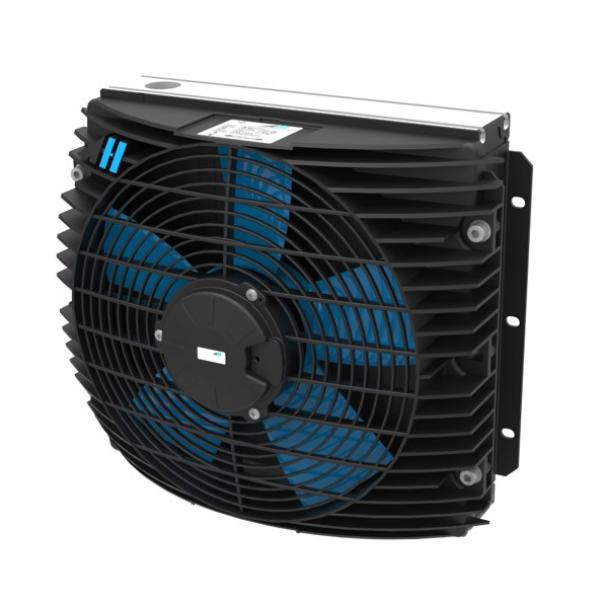

Oil/air cooler ASATT11RD02

Product description:

The ASATT11RD02 is a mid-range, 24V DC-driven oil/air cooler from the ASA Hydraulik TT series, offering one step higher performance compared to the smaller TT 07 model. It is primarily recommended for medium and larger hydraulic systems on work machines, commercial vehicles, and industrial mobile applications where both a 24V on-board electrical system and higher cooling capacity are required simultaneously. The 0.57 kg/s airflow and 0.30 kW motor provide efficient heat dissipation, while the low current draw of just 11.4 A is gentle on the vehicle's electrical system. The patented asa rail system, the corrugated fin aluminium radiator, and the IP 68-rated fan together make this cooler a long-lasting, easy-to-install solution even in demanding operating conditions.

Key features:

  • Type: TT 11 rail 24V DC
  • Order number: ASATT11RD02
  • Supply voltage: 24V DC
  • Motor power: 0.30 kW
  • Current draw: 11.4 A
  • Protection class: IP 68
  • Airflow: 0.57 kg/s
  • Noise level: 77 dB(A)
  • Oil connection: Ø30 mm (2x)
  • Max. operating pressure: 26 bar (static)
  • Operating temperature range: -20°C – +80°C (oil inlet temperature)
  • Radiator material: aluminium, corrugated fin
  • Dimensions (A×B×D): 340 × 380 × 255 mm
  • Weight: 9.2 kg
  • Mounting system: asa rail (2x)
  • Connector kit BSP 1": ILLZSET5G25 (available separately)
  • Connector kit BSP 1¼": ILLZSET5G32 (available separately)
  • Optional internal bypass valve: 2 bar (order number: ASATT11RD02BP)

Related products
Loading...
Data
Motor performance:
0.3
IP Class:
68
Airflow:
0.57
Sound level:
77
Amperage:
11.4
Weight:
11 kg/pc(s)
Details

Operating Principle

When switched on, the integrated 0.3 kW motor drives the fan, pushing air through the cooling fins to remove heat from the hydraulic oil. The high airflow of 0.57 kg/s ensures fast and consistent cooling, even under heavy-duty or continuous operation. The unit operates reliably within an oil temperature range of –20 °C to +80 °C, making it suitable for demanding environments. Its simple mechanical design and sealed construction result in minimal maintenance requirements and long-lasting, dependable performance in both stationary and mobile systems.

Asa Oil Cooler Tt11 Rail 24V
ASA OIL COOLER TT11 RAIL 24V
551+VAT
