ASA OIL COOLER TT07RD02 RAIL

Name: ASA OIL COOLER TT07RD02 RAIL
Brand: ASA
SKU: HK_ASATT07RD02
Price: 629 EUR
Availability: InStock

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Voltage (V): 24

Operating pressure: 26 bar (static)

Operating temperature: -20°C to +80°C (oil temperature)

Manufacturer: ASA

Datasheet: Click here to download

Manufacturer part number: ASATT07RD02

Available to order

495 €+VAT

Item number:

HK_ASATT07RD02

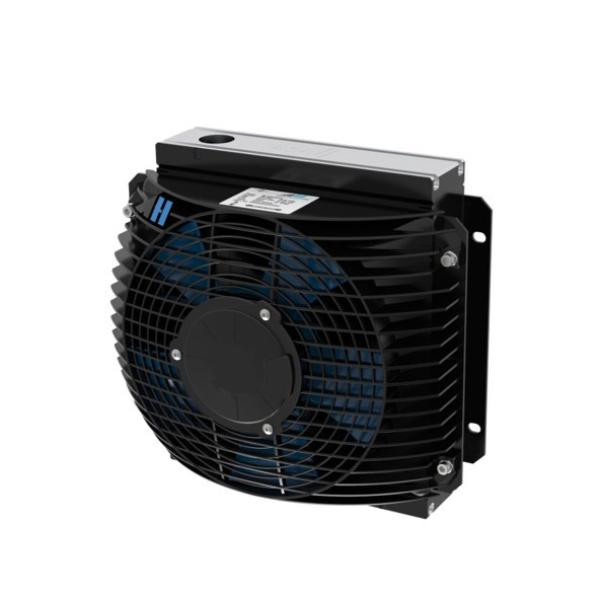

Oil/air cooler ASATT07RD02

Product Description:

The ASATT07RD02 is a 24V DC-driven oil/air cooler from the ASA Hydraulik TT series, physically identical to its 12V sibling but offering the perfect solution for vehicles and machines operating at higher on-board voltages. Its compact design, the patented asa rail mounting system and low current draw (only 5.2 A) make it particularly attractive in applications where minimising cable losses or connecting to an existing 24V electrical network is a primary concern. The corrugated fin aluminium radiator and the IP 68-rated fan together ensure durable, reliable heat dissipation even in dusty and wet environments.

Key Features:

Type: TT 07 rail 24V DC
Order number: ASATT07RD02
Supply voltage: 24V DC
Motor power: 0.14 kW
Current draw: 5.2 A
Protection class: IP 68
Airflow: 0.32 kg/s
Noise level: 74 dB(A)
Oil connection: Ø30 mm (2x)
Max. operating pressure: 26 bar (static)
Operating temperature range: -20°C – +80°C (oil inlet temperature)
Radiator material: aluminium, corrugated fin
Dimensions (A×B×D): 300 × 320 × 176 mm
Weight: 6.5 kg
Mounting system: asa rail (2x)
Connector kit BSP 1": ILLZSET5G25 (available separately)
Connector kit BSP 1¼": ILLZSET5G32 (available separately)
Optional internal bypass valve: 2 bar (order number: ASATT07RD02BP)

Data

Motor performance:

0.14

IP Class:

Airflow:

0.32

Sound level:

Amperage:

5.2

Weight:

10 kg/pc(s)

Details

Operating Principle

When powered on, the integrated 0.14 kW motor drives the fan, which pushes air through the cooler’s aluminum fins to extract heat from the circulating hydraulic oil. The generated airflow of 0.32 kg/s provides consistent and effective cooling even under heavy-duty, continuous operation. It functions reliably in oil temperature ranges from –20 °C to +80 °C, making it suitable for extreme operating conditions. Thanks to its sealed and mechanically simple design, the cooler is low-maintenance and provides dependable performance in both stationary and mobile hydraulic systems.
