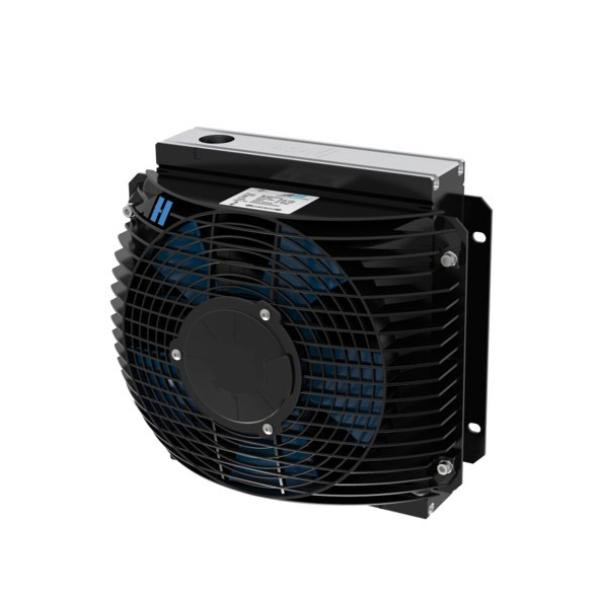

Oil/air cooler ASATT07RD01
Product Description:
The ASATT07RD01 is a reliable 12V DC-driven oil/air cooler from the ASA Hydraulik TT series, developed specifically for mobile hydraulic systems – work machines, commercial vehicles and other mobile applications. Its compact dimensions and the patented asa rail mounting system allow flexible installation and fast, secure connection in virtually any machine layout. The corrugated fin aluminium radiator dissipates heat efficiently with low pressure drop, while the IP 68-rated fan ensures a long service life even in dusty and wet environments. The maximum operating pressure of the cooler is 26 bar (static), and it operates reliably from -20°C up to +80°C oil inlet temperature.
Key Features:
- Type: TT 07 rail 12V DC
- Order number: ASATT07RD01
- Supply voltage: 12V DC
- Motor power: 0.13 kW
- Current draw: 9.6 A
- Protection class: IP 68
- Airflow: 0.32 kg/s
- Noise level: 74 dB(A)
- Oil connection: Ø30 mm (2x)
- Max. operating pressure: 26 bar (static)
- Operating temperature range: -20°C – +80°C (oil inlet temperature)
- Radiator material: aluminium, corrugated fin
- Dimensions (A×B×D): 300 × 320 × 176 mm
- Weight: 6.5 kg
- Mounting system: asa rail (2x)
- Connector kit BSP 1": ILLZSET5G25 (available separately)
- Connector kit BSP 1¼": ILLZSET5G32 (available separately)
- Optional internal bypass valve: 2 bar (order number: ASATT07RD01BP)
